1 Watt SLC Dual Series DC/DC Converters
Features
!
!
!
Low Cost
Operating Range of 4.5 to 5.5 Volts
Semi-Regulated 1 Watt Outputs
鈥?鹵5, 12, 15 and 7, 14, 17 Volt Outputs
Simple Five Terminal Operation
Small SLC Package, Fits in 0.19 sq.in.
of PCB Area
Low Noise Operation
750 VDC Isolation Voltage
5 Year Warranty
!
!
!
!
!
Description
The CALEX SLC Dual is specifically designed to provide
bipolar output voltages and isolation for 5 volt digital systems.
The series provides semi-regulated outputs of 5, 12 and 15
volts for directly driving your circuits or 7, 14 and 17 volt
outputs for driving three terminal regulators.
The high efficiency operation of typically 74% for a 12 volt
output means efficient use of your system power.
Easy five terminal operation makes using the converter a
snap. Just plug it in and you are ready to solve those nasty
analog problems that arise when only 5 volt digital power is
available in your system.
Model
5D5.075SLC
5D7.070SLC
5D12.040SLC
5D14.035SLC
5D15.033SLC
5D17.030SLC
Selection Chart
Input Range
VDC
Min
4.5
4.5
4.5
4.5
4.5
4.5
Max
5.5
5.5
5.5
5.5
5.5
5.5
VDC
鹵5.0
鹵7.0
鹵12.0
鹵14.0
鹵15.0
鹵17.0
Output
mA
鹵75
鹵70
鹵40
鹵35
鹵33
鹵30
Power
W
戮
1
1
1
1
1

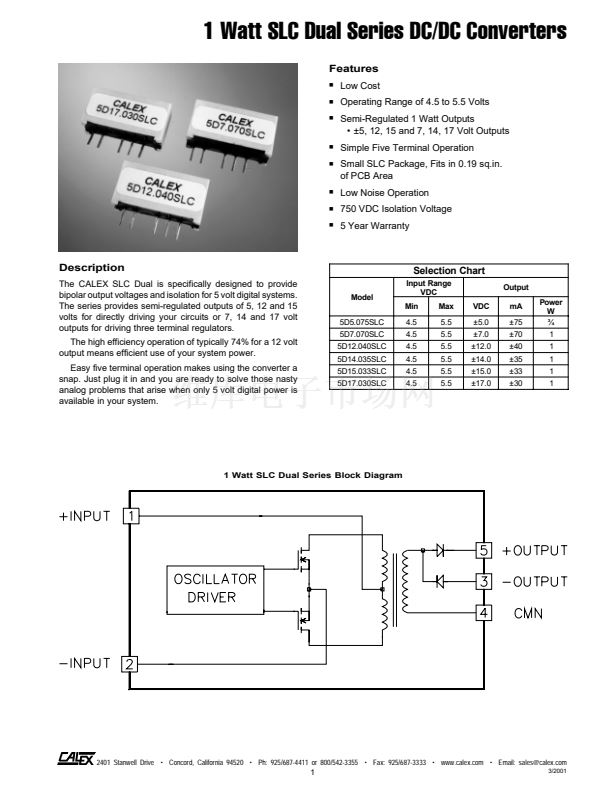

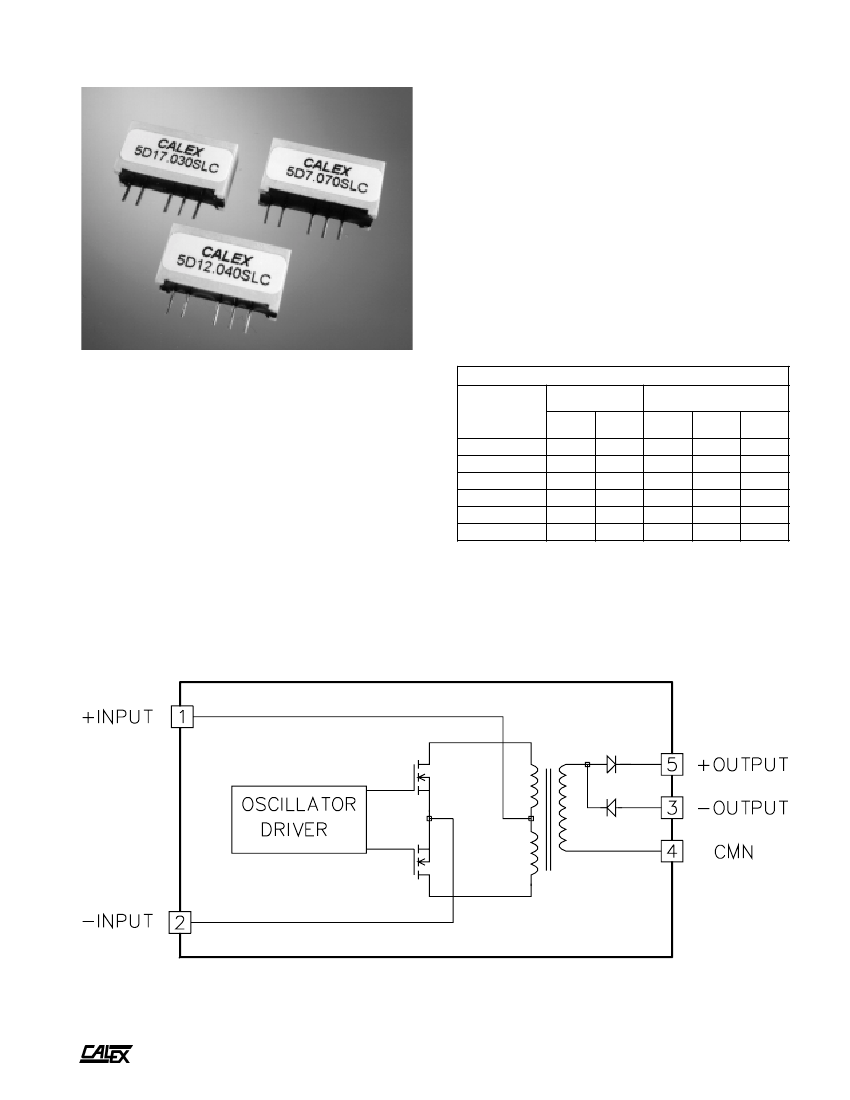

1 Watt SLC Dual Series Block Diagram
A
