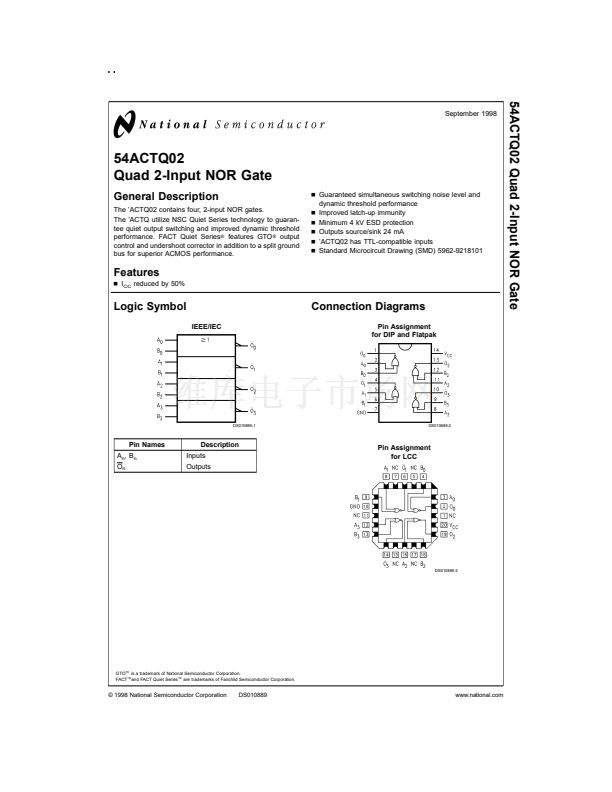

54ACTQ02 Quad 2-Input NOR Gate

September 1998

54ACTQ02

Quad 2-Input NOR Gate

General Description

The 鈥橝CTQ02 contains four, 2-input NOR gates.

The 鈥橝CTQ utilize NSC Quiet Series technology to guaran-

tee quiet output switching and improved dynamic threshold

performance. FACT Quiet Series

廬

features GTO

廬

output

control and undershoot corrector in addition to a split ground

bus for superior ACMOS performance.

Guaranteed simultaneous switching noise level and

dynamic threshold performance

Improved latch-up immunity

Minimum 4 kV ESD protection

Outputs source/sink 24 mA

鈥橝CTQ02 has TTL-compatible inputs

Standard Microcircuit Drawing (SMD) 5962-9218101

Features

reduced by 50%

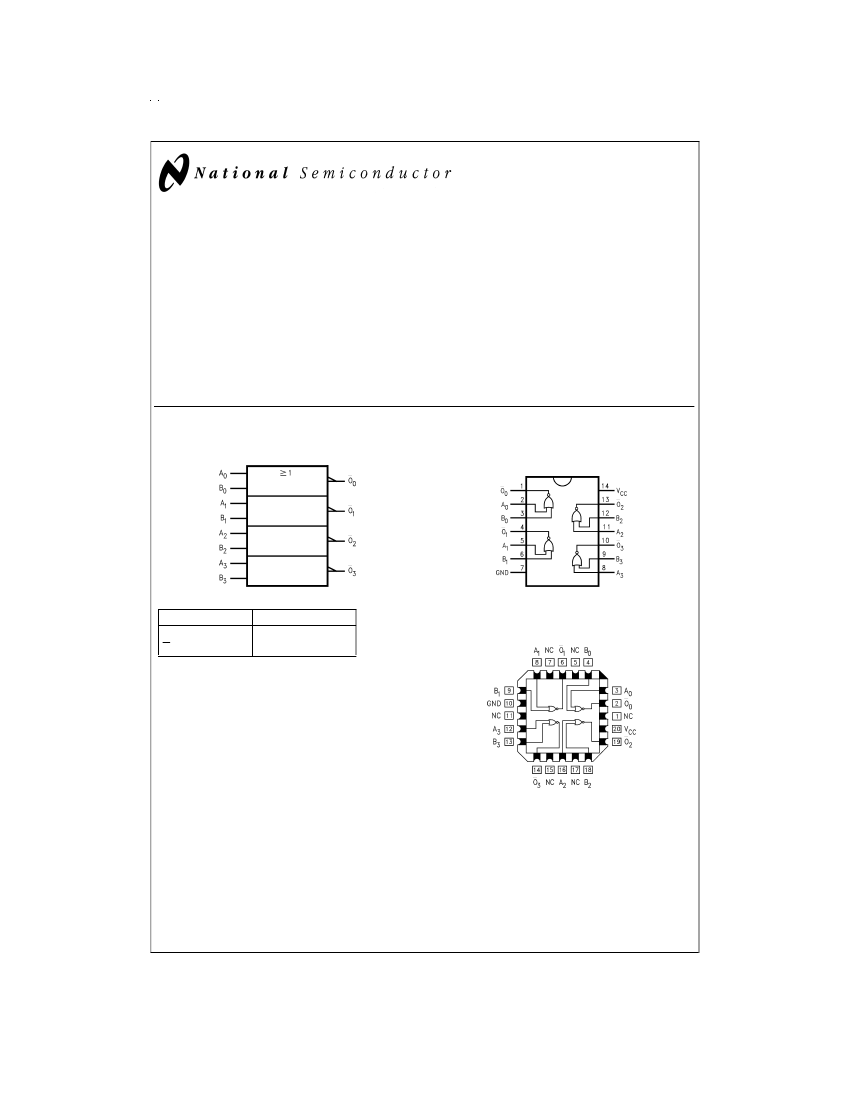

Logic Symbol

IEEE/IEC

Connection Diagrams

Pin Assignment

for DIP and Flatpak

DS010889-1

DS010889-2

Pin Names

, B

Description

Inputs

Outputs

Pin Assignment

for LCC

DS010889-3

GTO

鈩?/div>

is a trademark of National Semiconductor Corporation.

FACT

鈩?/div>

and FACT Quiet Series

鈩?/div>

are trademarks of Fairchild Semiconductor Corporation.

漏 1998 National Semiconductor Corporation

DS010889

www.national.com
