MICROCIRCUIT DATA SHEET

MV54ACT157-X REV 0A0

Quad 2-Input Multiplexer

General Description

The ACT157 is a high-speed quad 2-input multiplexer. Four bits of data from two sources

can be selected using the common Select and Enable inputs. The four outputs present the

selected data in the true (noninverted) form. The ACT157 can also be used as a function

generator.

Original Creation Date: 10/09/97

Last Update Date: 07/30/99

Last Major Revision Date: 10/09/97

Industry Part Number

54ACT157

NS Part Numbers

54ACT157E-QMLV*

54ACT157ERQMLV*

54ACT157J-QMLV**

54ACT157JRQMLV**

54ACT157W-QMLV***

54ACT157WRQMLV***

Prime Die

J157

Controlling Document

5962-89688

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25 C

+125 C

-55 C

+25 C

+125 C

-55 C

+25 C

+125 C

-55 C

+25 C

+125 C

-55 C

Quality Conformance Inspection

MIL-STD-883, Method 5005

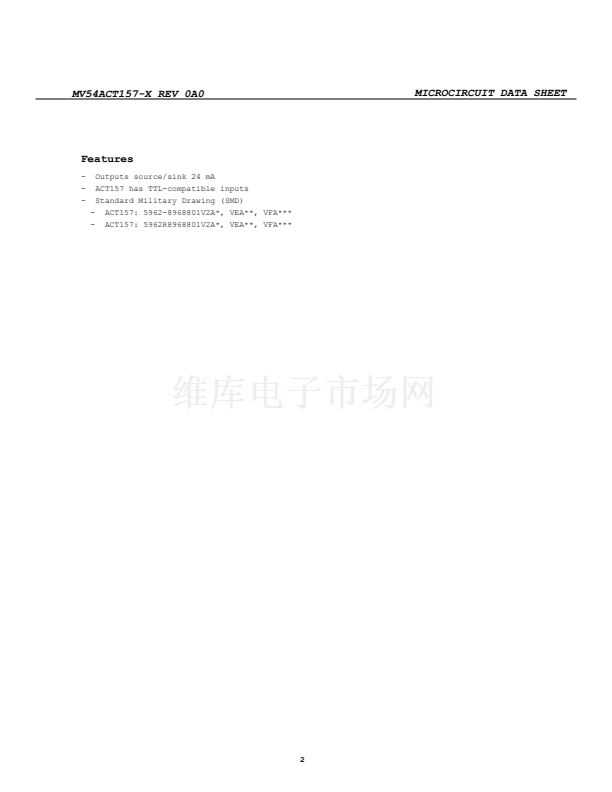

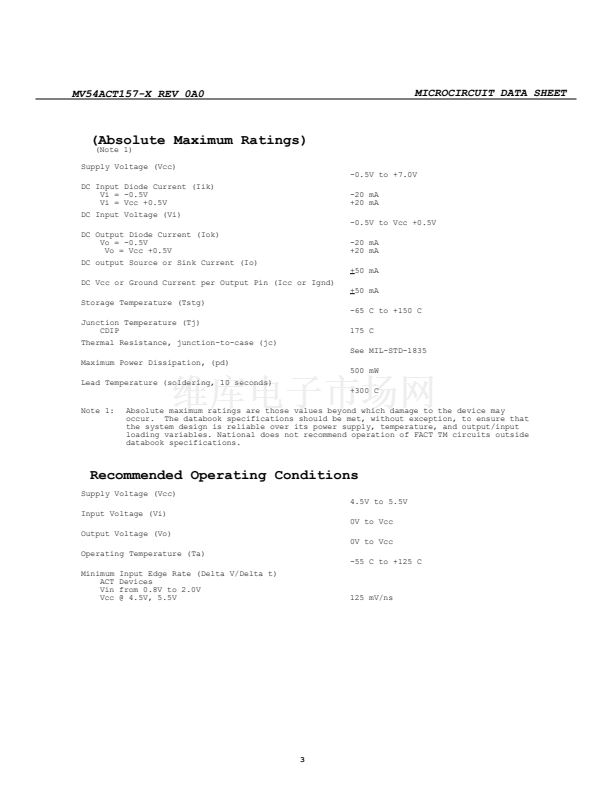

1
