54ACQ374F Datasheet

  • 54ACQ374F

  • Quiet Series Octal D Flip-Flop with TRI-STATE Outputs

  • 8頁

  • NSC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

54ACQ374
鈥?/div>
54ACTQ374 Quiet Series Octal D Flip-Flop with TRI-STATE Outputs
August 1998
54ACQ374
鈥?/div>
54ACTQ374
Quiet Series Octal D Flip-Flop with TRI-STATE
廬
Outputs
General Description
The 鈥橝CQ/鈥橝CTQ374 is a high-speed, low-power octal
D-type flip-flop featuring separate D-type inputs for each
flip-flop and TRI-STATE outputs for bus-oriented applica-
tions. A buffered Clock (CP) and Output Enable (OE) are
common to all flip-flops.
The 鈥橝CQ/鈥橝CTQ374 utilizes Quiet Series technology to
guarantee quiet output switching and improve dynamic
threshold performance. FACT Quiet Series
鈩?/div>
features
GTO
鈩?/div>
output control and undershoot corrector in addition to
a split ground bus for superior performance.
n
Guaranteed simultaneous switching noise level and
dynamic threshold performance
n
Improved latch-up immunity
n
Buffered positive edge-triggered clock
n
TRI-STATE outputs drive bus lines or buffer memory
address registers
n
Outputs source/sink 24 mA
n
Faster prop delays than the standard 鈥橝C/鈥橝CT374
n
4 kV minimum ESD immunity
n
Standard Military Drawing (SMD)
鈥?鈥橝CTQ374: 5962-92189
鈥?鈥橝CQ374: 5962-92179
Features
n
I
CC
and I
OZ
reduced by 50%
Logic Symbols

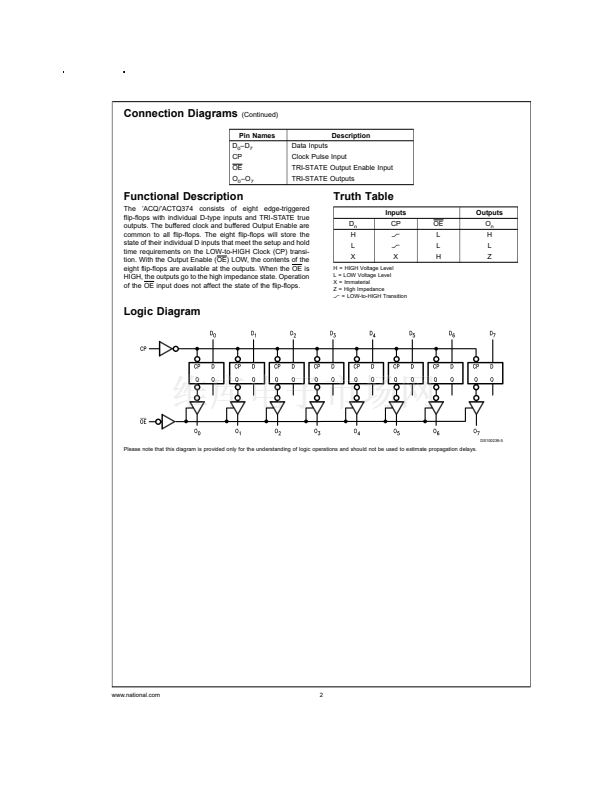

Connection Diagrams
Pin Assignment for DIP
and Flatpak
DS100239-1
IEEE/IEC
DS100239-3
Pin Assignment for LCC
DS100239-2
DS100239-4
GTO
鈩?/div>
is a trademark of National Semiconductor Corporation.
TRI-STATE
廬
is a registered trademark of National Semiconductor Corporation.
FACT
廬
is a registered trademark of Fairchild Semiconductor Corporation.
FACT Quiet Series
鈩?/div>
is a trademark of Fairchild Semiconductor Corporation.
漏 1998 National Semiconductor Corporation
DS100239
www.national.com
