INFRARED RECEIVER MODULE
Description

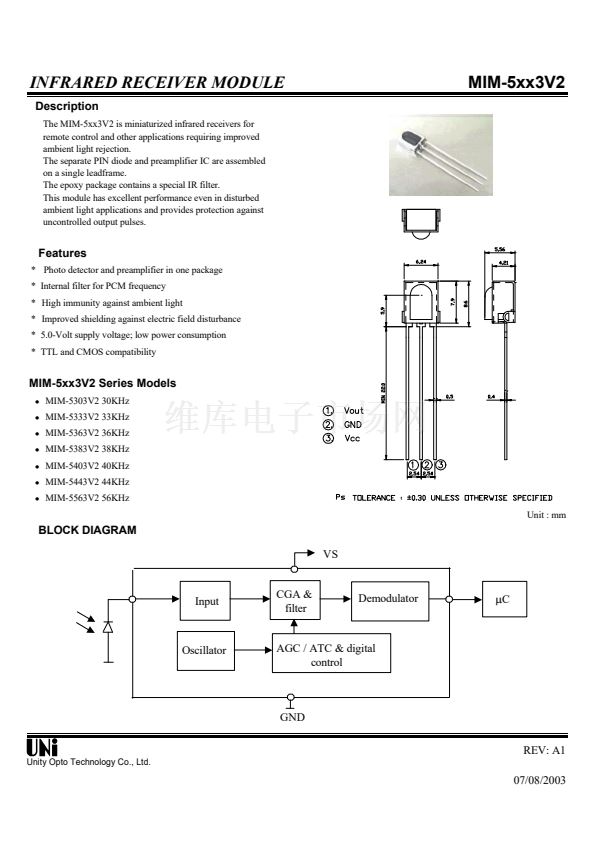

The MIM-5xx3V2 is miniaturized infrared receivers for
remote control and other applications requiring improved
ambient light rejection.
The separate PIN diode and preamplifier IC are assembled
on a single leadframe.
The epoxy package contains a special IR filter.
This module has excellent performance even in disturbed
ambient light applications and provides protection against
uncontrolled output pulses.
MIM-5xx3V2
Features
* Photo detector and preamplifier in one package
* Internal filter for PCM frequency
* High immunity against ambient light
* Improved shielding against electric field disturbance
* 5.0-Volt supply voltage; low power consumption
* TTL and CMOS compatibility
MIM-5xx3V2 Series Models
l
l
l
l
l
l
l
MIM-5303V2 30KHz
MIM-5333V2 33KHz
MIM-5363V2 36KHz
MIM-5383V2 38KHz
MIM-5403V2 40KHz
MIM-5443V2 44KHz
MIM-5563V2 56KHz
Unit : mm
BLOCK DIAGRAM
VS
Input
CGA &
filter
Demodulator
碌C
Oscillator
AGC / ATC & digital
control
GND

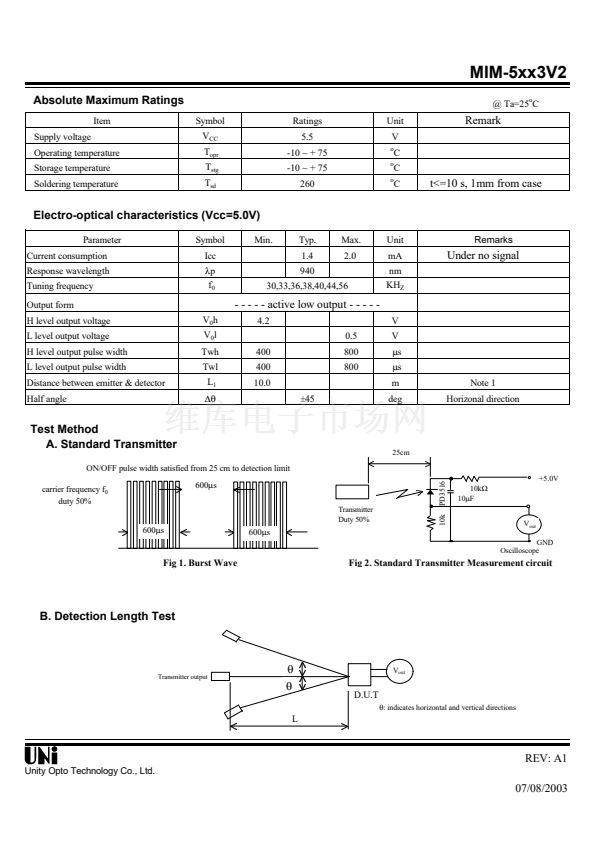

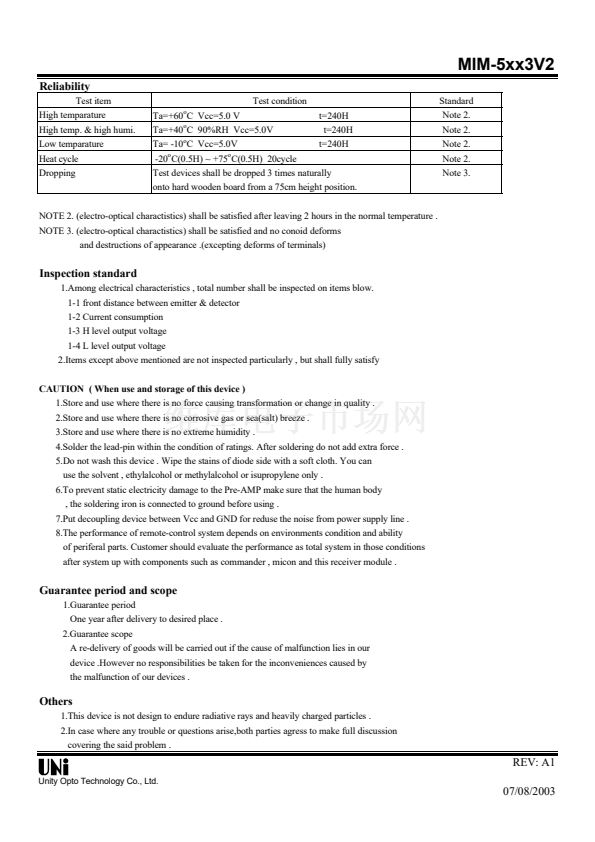

REV: A1
Unity Opto Technology Co., Ltd.
07/08/2003
