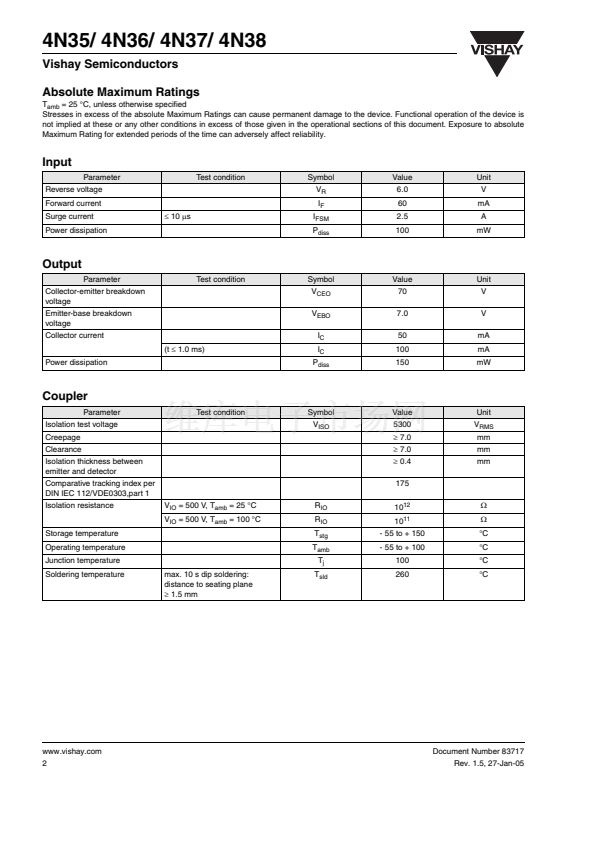

4N35/ 4N36/ 4N37/ 4N38

Vishay Semiconductors

Optocoupler, Phototransistor Output, With Base Connection

Features

鈥?/div>

Isolation Test Voltage 5300 V

RMS

Interfaces with common logic families

Input-output coupling capacitance < 0.5 pF

Industry Standard Dual-in line 6-pin package

Lead-free component

Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

i179004

6 B

5 C

4 E

Agency Approvals

鈥?Underwriters Laboratory File #E52744

鈥?DIN EN 60747-5-2 (VDE0884)

DIN EN 60747-5-5 pending

Available with Option 1

Pb-free

Applications

AC mains detection

Reed relay driving

Switch mode power supply feedback

Telephone ring detection

Logic ground isolation

Logic coupling with high frequency noise rejection

These isolation processes and the Vishay ISO9001

quality program results in the highest isolation perfor-

mance available for a commecial plastic phototransis-

tor optocoupler.

The devices are available in lead formed configura-

tion suitable for surface mounting and are available

either on tape and reel, or in standard tube shipping

containers.

Note:

Designing with data sheet is cover in Application Note 45

Order Information

Part

4N35

4N36

4N37

4N38

4N35-X006

4N35-X007

4N35-X009

4N36-X007

4N36-X009

4N37-X006

4N37-X009

Remarks

CTR > 100 %, DIP-6

CTR > 20 %, DIP-6

CTR > 100 %, DIP-6 400 mil (option 6)

CTR > 100 %, SMD-6 (option 7)

CTR > 100 %, SMD-6 (option 9)

CTR > 100 %, SMD-6 (option 7)

CTR > 100 %, SMD-6 (option 9)

CTR > 100 %, DIP-6 400 mil (option 6)

CTR > 100 %, SMD-6 (option 9)

Description

This data sheet presents five families of Vishay Indus-

try Standard Single Channel Phototransistor Cou-

plers.These families include the 4N35/ 4N36/ 4N37/

4N38 couplers.

Each optocoupler consists of gallium arsenide infra-

red LED and a silicon NPN phototransistor.

These couplers are Underwriters Laboratories (UL)

listed to comply with a 5300 V

RMS

isolation test volt-

age.

This isolation performance is accomplished through

Vishay double molding isolation manufacturing pro-

cess. Comliance to DIN EN 60747-5-2(VDE0884)/

DIN EN 60747-5-5 pending partial discharge isolation

specification is available for these families by ordering

option 1.

For additional information on the available options refer to

Option Information.

Document Number 83717

Rev. 1.5, 27-Jan-05

www.vishay.com

數據列表
4N35 - 38
標準包裝
2,000
類別
隔離器
家庭
光隔離器 - 晶體管，光電輸出
系列
-
通道數
1
輸入類型
DC
電壓 - 隔離
5300Vrms
電流傳輸比（最小值）
20% @ 20mA
電流傳輸比（最大）
-
輸出電壓
80V
電流 - 輸出 / 通道
50mA
電流 - DC 正向(If)
60mA
Vce飽和（最大）
70V
輸出類型
有基極的晶體管
安裝類型
通孔
封裝/外殼
6-DIP（0.300"，7.62mm）
包裝
管件
其它名稱
4N38GI4N38GI-ND751-1259-5
