424L4B Datasheet

  • 424L4B

  • 32-Pin DIP 4-Pole Filters

  • 12頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

424 Series
10 Hz to 102.4 kHz
4-Bit Programmable
Description
The 424 Series are 4-pole digitally programmable
low-pass and high-pass active filters. These new
filters take advantage of the company鈥檚 proprietary
designs using surface-mount technology to provide
a low profile, compact package in minimal board
space. 424 filters are factory tuned to one of ten
preset 4-bit binary ranges from 10 Hz to 102.4 kHz.
Contact the factory for custom discrete tuning
ranges, maximum span 1000:1.
All 424 Series models are easy to use fully finished
filters which require no external components or
adjustment. They feature low harmonic distortion,
near theoretical phase and amplitude characteristics
and operate over a dynamic input voltage range
from non-critical 鹵12V to 鹵18V power supplies.
Features/Benefits:
鈥?Low harmonic distortion and wide signal-to-noise
ratio to 16-bit resolution.
鈥?Compact 1.8"L x 0.8"W x 0.3"H min. (32-pin DIP
footprint) minimizes board space requirements.
鈥?Digitally programmable corner frequency allows
selecting cut-off frequencies specific to each
application.
鈥?Plug-in ready-to-use, reducing engineering design
and manufacturing cycle time.
鈥?Factory tuned, no external clocks or adjustments
needed
鈥?Broad range of transfer characteristics and corner
frequencies to meet a wide range of applications.
Applications
鈥?Anti-alias filtering
鈥?Data acquisition systems
鈥?Communication systems and electronics
鈥?Medical electronics equipment and research
鈥?Aerospace, navigation and sonar applications
鈥?Acoustic and vibration analysis and control
鈥?Real and compressed time data analysis
鈥?Noise elimination
鈥?Signal reconstruction

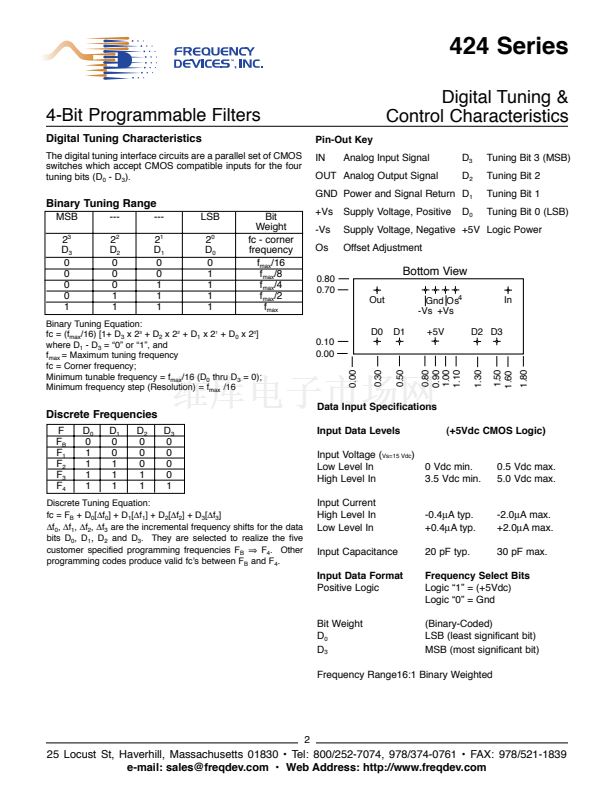

Programmable Specifications.
. . . . . . . . . . . . .
Page
Digital Tuning & Control . . . . . . . . . . . . . . . . . . . . . . 2
Available Low-Pass Models:
. . . . . . . . . . . . . . . . . . .
424L4B 4-pole Butterworth . . . . . . . . . . . . . . . . . . 3
424L4L
4-pole Bessel . . . . . . . . . . . . . . . . . . . . . . 3
424L4Y2 4-pole Cheby (0.2 dB Ripple) . . . . . . . . . . 3
424L4Y5 4-pole Cheby (0.5 dB Ripple) . . . . . . . . . . 3
Available High-Pass Models:
. . . . . . . . . . . . . . . . . .
424H4B 4-pole Butterworth . . . . . . . . . . . . . . . . . . 4
424H4Y2 4-pole Cheby (0.2 dB Ripple) . . . . . . . . . . 4
424H4Y5 4-pole Cheby (0.5 dB Ripple) . . . . . . . . . . 4
General Specifications:
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin-out/package data. . . . . . . . . . . . . . . . . . . . . . . . . 5
32-Pin DIP
4-Pole Filters
25 Locust St, Haverhill, Massachusetts 01830 鈥?Tel: 800/252-7074, 978/374-0761 鈥?FAX: 978/521-1839
e-mail: sales@freqdev.com 鈥?Web Address: http://www.freqdev.com
