3KP SERIES

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE - 5.0 TO 170 Volts

3000 Watt Peak Pulse Power

FEATURES

Plastic package has Underwriters Laboratory

Flammability Classification 94V-O

Glass passivated junction

3000W Peak Pulse Power capability on

10/1000

攏g

S waveform

Excellent clamping capability

Repetition rate(Duty Cycle): 0.05%

Low incremental surge resistance

Fast response time: typically less

than 1.0 ps from 0 volts to BV

Typical I

less than 1

攏g

A above 10V

High temperature soldering guaranteed:

300

壟J

/10 seconds/.375鈥?(9.5mm) lead

length/5lbs., (2.3kg) tension

MECHANICAL DATA

Case: Molded plastic over glass passivated junction

Terminals: Plated Axial leads, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denoteds positive

end(cathode)

Mounting Position: Any

Weight: 0.07 ounce, 2.1 grams

DEVICES FOR BIPOLAR APPLICATIONS

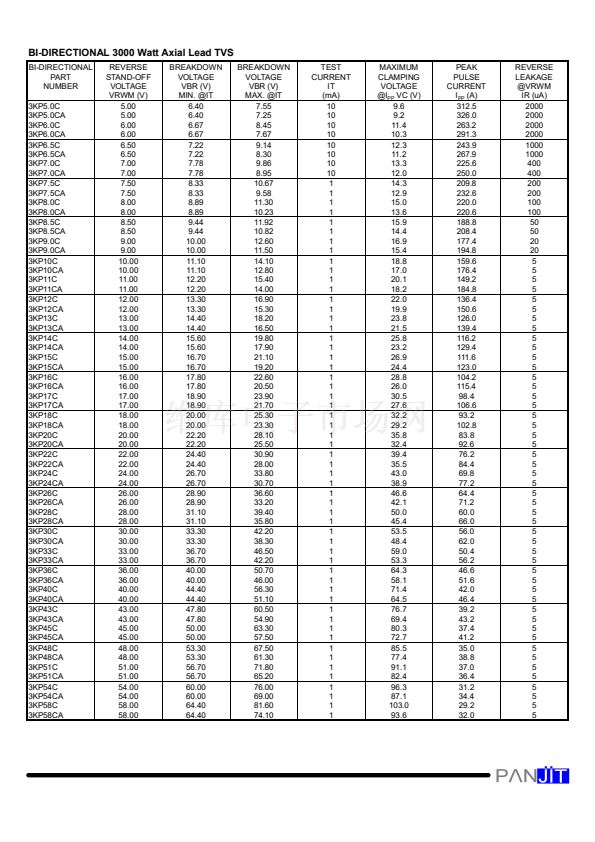

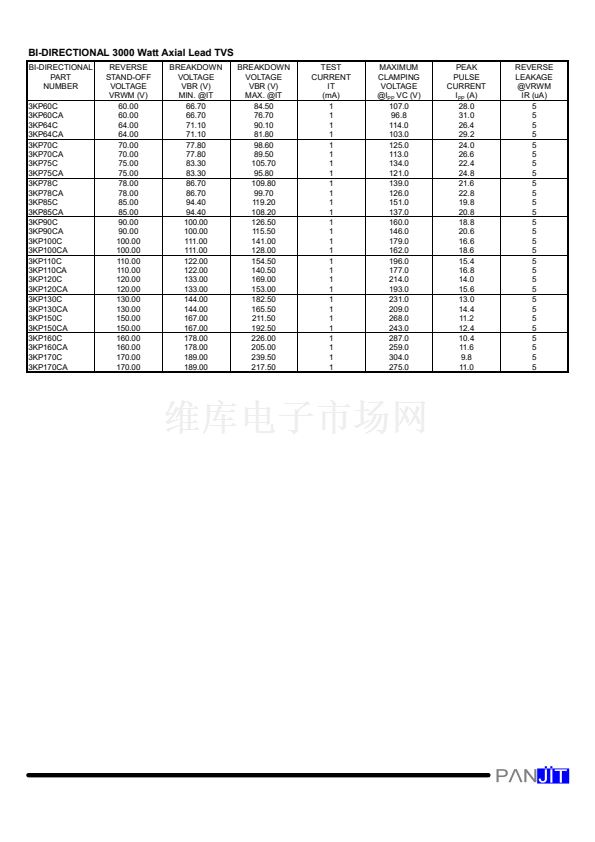

For Bidirectional use C or CA Suffix for types

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25

壟J

ambient temperature unless otherwise specified.

RATING

SYMBOL

VALUE

Peak Pulse Power Dissipation on 10/1000

攏gS

waveform

PPM

Minimum 3000

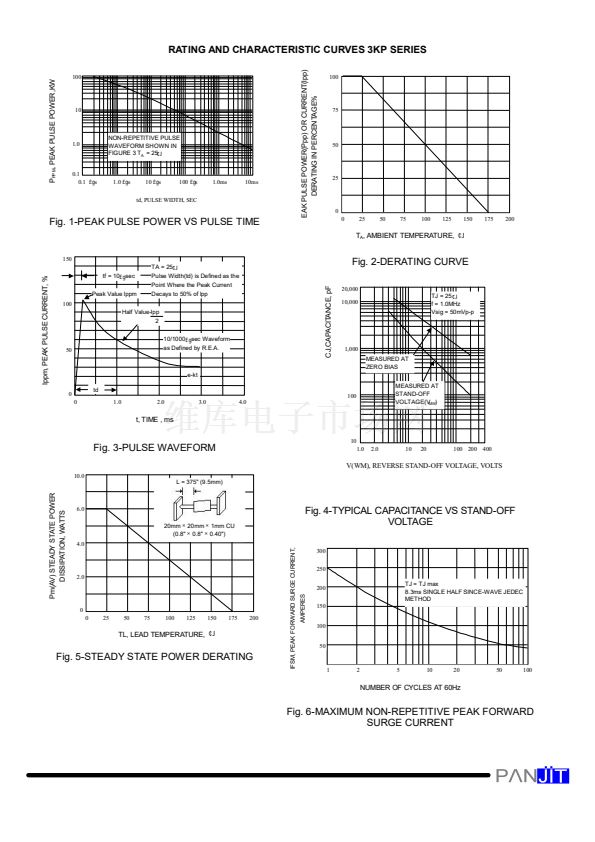

(Note 1, FIG.1)

Peak Pulse Current of on 10/1000

攏gS

waveform

PPM

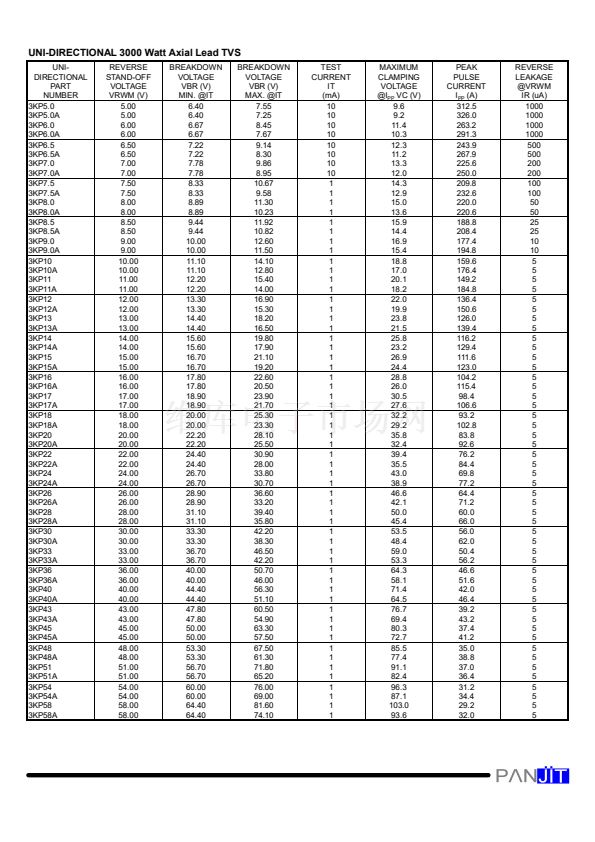

SEE TABLE 1

(Note 1, FIG.3)

M(AV)

8.0

Steady State Power Dissipation at T

=75

壟J

Lead

Lengths .375鈥?(9.5mm) (Note 2)

Peak Forward Surge Current, 8.3ms Single Half Sine-Wave

FSM

250

Superimposed on Rated Load, Unidirectional only

(JECED Method) (Note 3)

Operating Junction and Storage Temperature Range

STG

-55 to +175

NOTES:

1.Non-repetitive current pulse, per Fig. 3 and derated above T

=25

壟J

per Fig. 2.

2.Mounted on Copper Leaf area of 0.79in (20mm ).

3.Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle= 4 pulses per minutes maximum.

P-600

UNITS

Watts

Amps

Watts

Amps

壟J

產品培訓模塊
Transient Voltage Suppression (TVS) Diodes
標準包裝
800
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
3KP
電壓 - 反向隔離（標準值）
85V
電壓 - 擊穿
94.4V
功率（瓦特）
3000W
電極標記
單向
安裝類型
通孔
封裝/外殼
P600，軸向
供應商設備封裝
P600
包裝
帶卷 (TR)
