SERIES 63
BEAU Terminal Blocks
BEAU
.438" PCB Barrier Terminal Strip, 600V
Description
The series 63, PCB barrier terminal strip is
our smallest product designed for service
up to 600V. It is an economical, lower
power alternative to our high power 66
series product.
The terminal block can be configured
for maximum 12 AWG wire and up to 25
Amps.
Made in the USA, all Beau terminal
blocks embody the highest quality
standards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all
applicable industry standards.
Features
鈥?/div>
High voltage density,
the 63 series is
our smallest 600V rated PCB barrier
terminal strip.
Robust and durable,
63 series screw
terminals are ultrasonically
welded into the thermoplastic
insulator, eliminating terminal
twisting and associated solder joint
failure.
Wide variety of options.
Our broad
range of screw, terminal, hardware
and mounting options allows us to
save you assembly costs and improve
interconnect performance.
鈥?/div>
鈥?/div>
PRODUCT RATINGS
#6-32 BINDING HEAD SCREW
UL
Class B
15 Amps @ 600 V 14 AWG
Class C
15 Amps @ 600 V 14 AWG
CSA
Class B
Class C
20 Amps @ 600 V 14 AWG
20 Amps @ 600 V 14 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Tightening torque
Maximum torque
Wire strip length
Wire Range
OPTIONS
-45
-47
-45-56
-49
-50
-58
-59
-C
-M
-V
Slotted screw
Screws up, wire ready
Stainless steel screws, slotted
Brass, phillips/slotted screw
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
No mounting ends
3.5 M screw, slotted
130潞C insulator
10500 VDC
>5000 Megohms
12 in-lbs.
13 in-lbs.
5/16"
12 to 24 AWG
#6-32 WIRE CLAMP SCREW
UL
Class B
25 Amps @ 600 V 12 AWG
Class C
25 Amps @ 600 V 12 AWG
CSA
Class B
Class C
25 Amps @ 600 V 12 AWG
25 Amps @ 600 V 12 AWG
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
RTI mechanical w/o impact
110
o
C
110
o
C
NOTE: 3.5M screws carry #6-32 screw ratings.
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
MATERIALS
Insulator
Terminal
Screws
Thermoplastic,
UL94V-0, black
Brass, tin-lead plate
#6-32, phillips/slotted, steel,
zinc chromate plate

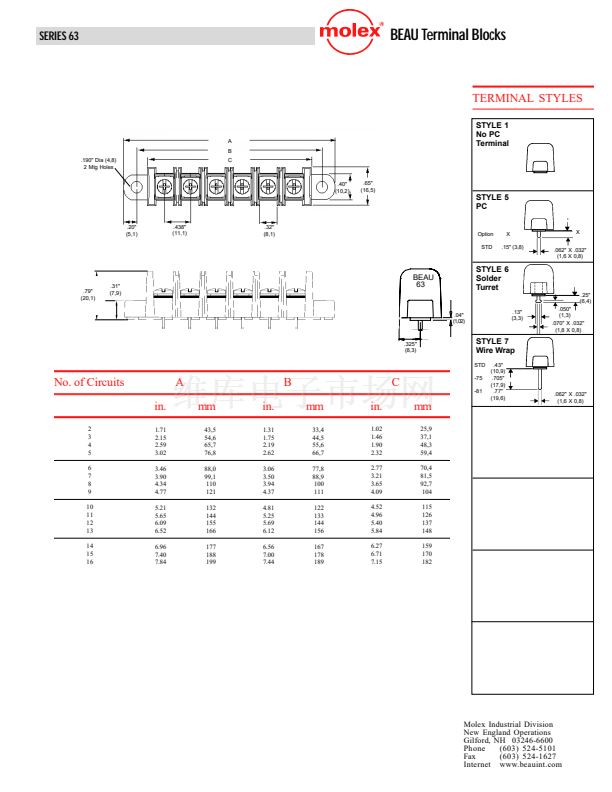

HOW TO ORDER
6 3
SERIES
X
TERMINAL
STYLE
15
67
X X - X X
NO. OF
POLES
2 to 16
(Dash #s above
and
opposite page)
OPTIONS
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
