3366-1000 Datasheet

  • 3366-1000

  • PLUG IDC CENTRONIC 36 WAY

  • 37.00KB

  • 3頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

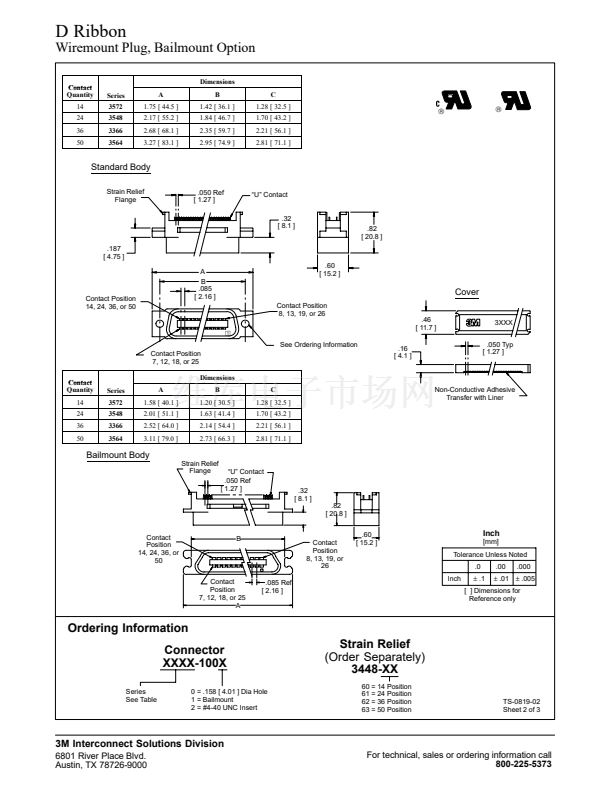

D Ribbon
Wiremount Plug, Bailmount Option
S
S
S
S
Accepts 26鈥?8 AWG wire
Accepts .050 inch round, flat or jacketed cable
Low profile
Flexible design offers various mounting
applications
S
Contact design efficiency enables
multiple insertion/withdrawals
Date Modified: February 19, 1999
47
TS-0819-02
Sheet 1 of 3
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplate:
Wiping Area:
Strain Relief
Material:
Wire Accommodation:
Marking:
Glass Filled Polyester (PBT)
UL 94V-0
Gray
Copper Alloy
100
碌鈥?/div>
(2.54
碌m)
Nickel 鈥?QQ-N-290, Class 2
30
碌鈥?/div>
(0.76
碌m)
Gold 鈥?MIL-G-45204, Type II, Grade C
Stainless Steel 鈥?.012 [ 0.30 ] Thick
26 & 28 AWG Solid or Stranded
3M Logo, Part Number Identification, Position 1
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
脳
10
9
鈩?/div>
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
鈥?5擄 to +105擄C
UL File No.: E68080
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373

3366-1000 產品屬性

  • 3yyy-100x D Ribbon Wiremount Plug

  • Input/Output Connector Systems PrimerIDC Wiremount Connectors Primer

  • 100

  • 連接器，互連式

  • D形，Centronics

  • 3366

  • 中央帶觸點

  • 插頭

  • 36

  • 2

  • 自由懸掛

  • IDC

  • 空心，無螺紋

  • -

  • -

  • 金

  • 30µin（0.76µm）

  • 3367-2002-ND - CONN SCKT 36POS DELTA W/INSER3367-2000-ND - CONN SCKT 36POS DELTA W/O INSMDE36K-ND - DELTA CONN 36POS SOCKET W/INSERTMDD36K-ND - DELTA CONN 36POS SOCK W/O INSERT

  • 3366100054007328595400732859980-6100-9857-880610098578MDA36GMDA36K
