Package Dimensions
unit : mm
2040A
4.0
Low noise : NF=1.8dB typ (f=100MHz).
High power gain : PG=27dB typ (f=100MHz).
Small reverse transfer capacitance : Crss=0.035pF
(VDS=10V, f=1MHz).
[2SK544]
2.2
0.4
0.5
0.6
1.8
15.0
0.4
3.0
0.4
1 2
1.3
0.7
3
1.3
Specifications
Absolute Maximum Ratings
at Ta=25擄C
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Drain Current
Allowable Power Dissipation
Channel Temperature
Storage Temperature
Symbol
VDS
VGS
ID
PD
Tch
Tstg
Conditions
1 : Drain
2 : Source
3 : Gate
SANYO : SPA
Ratings
20
鹵5
30
300
125
--55 to +150
Unit
V
V
mA
mW
擄C
擄C
3.0
3.8nom
Electrical Characteristics
at Ta=25擄C
Parameter
Drain-to-Source Voltage
Gate-to-Source Leakage Current
Zero-Gate Voltage Drain Current
Cutoff Voltage
Rank
IDSS
Symbol
VDSX
IGSS
Conditions
VGS= --4V, ID=100碌A(chǔ)
VDS=0, VGS=鹵5V
VDS=10V, VGS=0
VDS=10V, ID=100碌A(chǔ)
Ratings
min
20
10
1.2*
12*
--2.5
typ
max
Unit
V
nA
mA
V
IDSS*
VGS(off)
* : The 2SK544 is classified by IDSS as follows (unit : mA) :
D
1.2 to 3.0
E
2.5 to 6.0
F
5.0 to 12
0.7

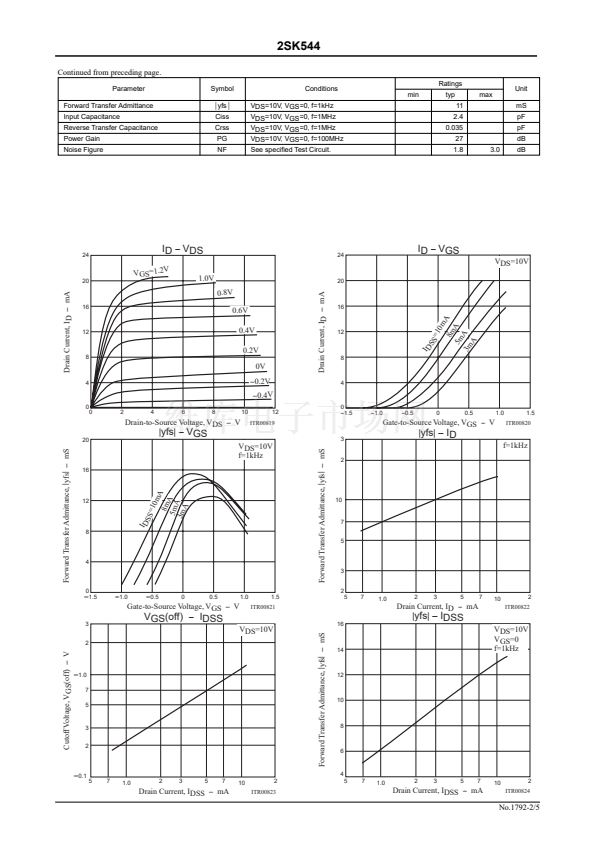

Continued on next page.
