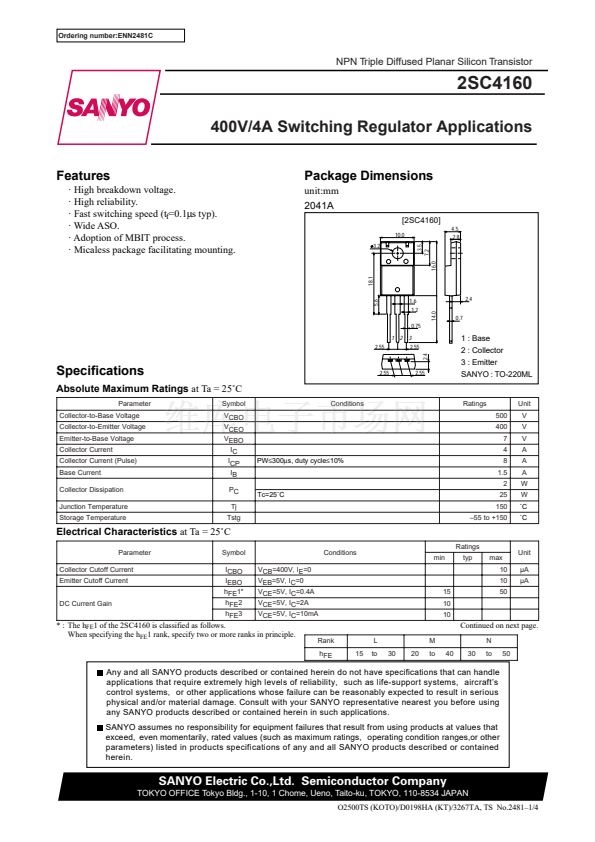

Ordering number:ENN2481C
NPN Triple Diffused Planar Silicon Transistor
2SC4160
400V/4A Switching Regulator Applications
Features
路 High breakdown voltage.
路 High reliability.
路 Fast switching speed (t
f
=0.1碌s typ).
路 Wide ASO.
路 Adoption of MBIT process.
路 Micaless package facilitating mounting.
Package Dimensions
unit:mm
2041A
[2SC4160]
10.0
3.2
3.5
7.2
4.5
2.8
18.1
16.0
5.6
14.0
1.6
1.2
0.75
1 2
3
2.55
2.4
2.4
0.7
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-220ML
2.55
Specifications
Absolute Maximum Ratings
at Ta = 25藲C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
IB
PC
Tj
Tstg
Conditions
2.55
2.55
Ratings
500
400
7
4
Unit
V
V
V
A
A
A
W
W
PW鈮?00碌s, duty cycle鈮?0%
8
1.5
2
Tc=25藲C
25
150
鈥?5 to +150
藲C
藲C
Electrical Characteristics
at Ta = 25藲C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Symbol
ICBO
IEBO
hFE1*
hFE2
hFE3
VCB=400V, IE=0
VEB=5V, IC=0
VCE=5V, IC=0.4A
VCE=5V, IC=2A
VCE=5V, IC=10mA
15
10
10
Conditions
Ratings
min
typ
max
10
10
50
Unit
碌A(chǔ)
碌A(chǔ)
* : The h
FE
1 of the 2SC4160 is classified as follows.
When specifying the h
FE
1 rank, specify two or more ranks in principle.

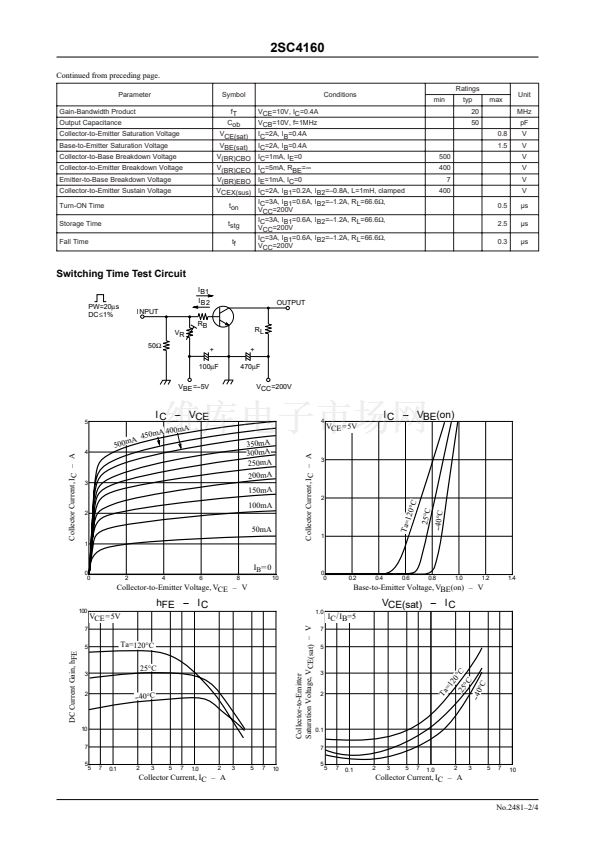

Continued on next page.
Rank
hFE
15
L
to
30
20
M
to
40
30
N
to
50
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft鈥檚
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
