2N6345 Datasheet

  • 2N6345

  • TRIACS Silicon Bidirectional Triode Thyristors

  • 6頁

  • MOTOROLA   MOTOROLA

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

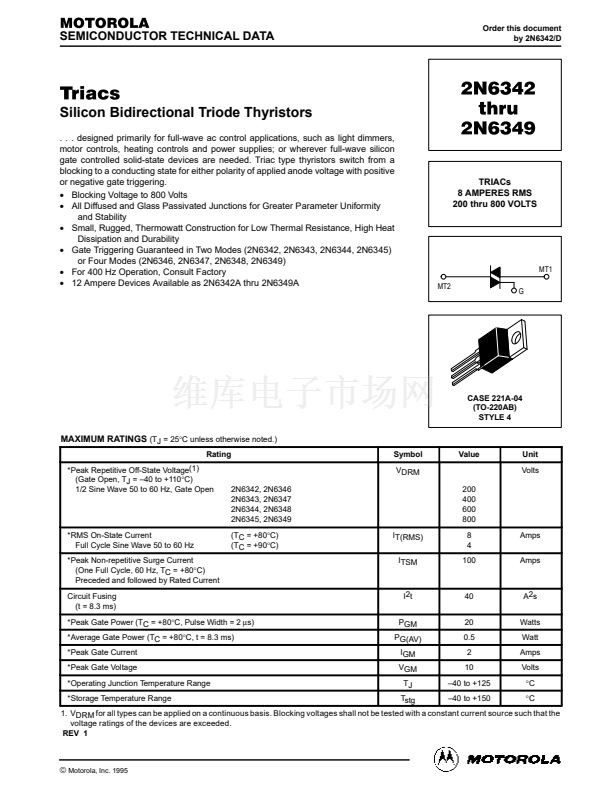

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document
by 2N6342/D
Triacs
Silicon Bidirectional Triode Thyristors
. . . designed primarily for full-wave ac control applications, such as light dimmers,
motor controls, heating controls and power supplies; or wherever full-wave silicon
gate controlled solid-state devices are needed. Triac type thyristors switch from a
blocking to a conducting state for either polarity of applied anode voltage with positive
or negative gate triggering.
鈥?/div>
Blocking Voltage to 800 Volts
鈥?/div>
All Diffused and Glass Passivated Junctions for Greater Parameter Uniformity
and Stability
鈥?/div>
Small, Rugged, Thermowatt Construction for Low Thermal Resistance, High Heat
Dissipation and Durability
鈥?/div>
Gate Triggering Guaranteed in Two Modes (2N6342, 2N6343, 2N6344, 2N6345)
or Four Modes (2N6346, 2N6347, 2N6348, 2N6349)
鈥?/div>
For 400 Hz Operation, Consult Factory
鈥?/div>
12 Ampere Devices Available as 2N6342A thru 2N6349A
2N6342
thru
2N6349
TRIACs
8 AMPERES RMS
200 thru 800 VOLTS
MT1
MT2
G
CASE 221A-04
(TO-220AB)
STYLE 4
MAXIMUM RATINGS
(TJ = 25擄C unless otherwise noted.)
Rating
*Peak Repetitive Off-State Voltage(1)
(Gate Open, TJ = 鈥?0 to +110擄C)
1/2 Sine Wave 50 to 60 Hz, Gate Open
Symbol
VDRM
2N6342, 2N6346
2N6343, 2N6347
2N6344, 2N6348
2N6345, 2N6349
(TC = +80擄C)
(TC = +90擄C)
IT(RMS)
ITSM
200
400
600
800
8
4
100
Amps
Amps
Value
Unit
Volts
*RMS On-State Current
Full Cycle Sine Wave 50 to 60 Hz
*Peak Non-repetitive Surge Current
(One Full Cycle, 60 Hz, TC = +80擄C)
Preceded and followed by Rated Current
Circuit Fusing
(t = 8.3 ms)
I2t
PGM
PG(AV)
IGM
VGM
TJ
Tstg
40
20
0.5
2
10
鈥?0 to +125
鈥?0 to +150
A2s
Watts
Watt
Amps
Volts
擄C
擄C
*Peak Gate Power (TC = +80擄C, Pulse Width = 2
碌s)
*Average Gate Power (TC = +80擄C, t = 8.3 ms)
*Peak Gate Current
*Peak Gate Voltage
*Operating Junction Temperature Range
*Storage Temperature Range
1. VDRM for all types can be applied on a continuous basis. Blocking voltages shall not be tested with a constant current source such that the
voltage ratings of the devices are exceeded.
REV 1
Motorola Thyristor Device Data
漏
Motorola, Inc. 1995
1
