2417H4A Datasheet

  • 2417H4A

  • NetLight 2417G4A and 2417H4A ATM/SONET/SDH Transceivers

  • 10頁

  • AGERE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

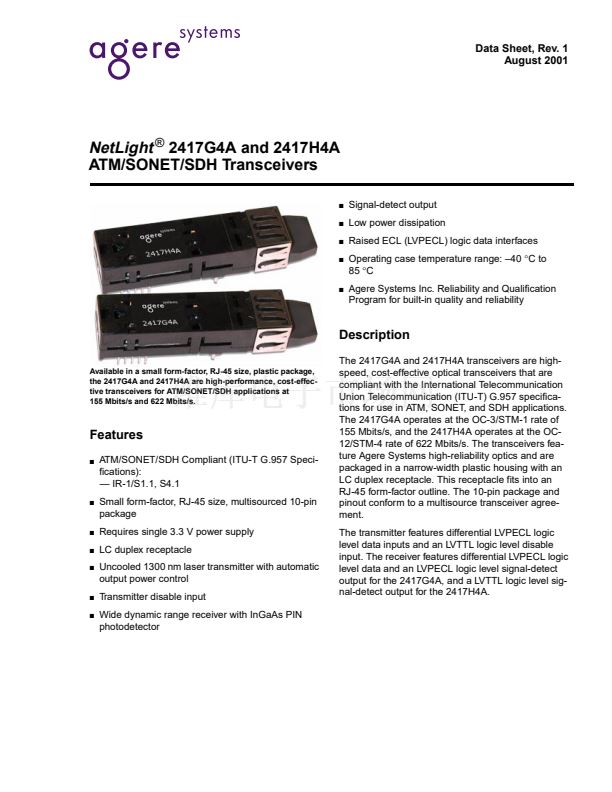

Data Sheet, Rev. 1
August 2001
NetLight
廬
2417G4A and 2417H4A
ATM/SONET/SDH Transceivers
s
s
s
s
Signal-detect output
Low power dissipation
Raised ECL (LVPECL) logic data interfaces
Operating case temperature range: 鈥?0
擄C
to
85
擄C
Agere Systems Inc. Reliability and Qualification
Program for built-in quality and reliability
s
Description
Available in a small form-factor, RJ-45 size, plastic package,
the 2417G4A and 2417H4A are high-performance, cost-effec-
tive transceivers for ATM/SONET/SDH applications at
155 Mbits/s and 622 Mbits/s.
Features
s
ATM/SONET/SDH Compliant (ITU-T G.957 Speci-
fications):
鈥?IR-1/S1.1, S4.1
Small form-factor, RJ-45 size, multisourced 10-pin
package
Requires single 3.3 V power supply
LC duplex receptacle
Uncooled 1300 nm laser transmitter with automatic
output power control
Transmitter disable input
Wide dynamic range receiver with InGaAs PIN
photodetector
s
The 2417G4A and 2417H4A transceivers are high-
speed, cost-effective optical transceivers that are
compliant with the International Telecommunication
Union Telecommunication (ITU-T) G.957 specifica-
tions for use in ATM, SONET, and SDH applications.
The 2417G4A operates at the OC-3/STM-1 rate of
155 Mbits/s, and the 2417H4A operates at the OC-
12/STM-4 rate of 622 Mbits/s. The transceivers fea-
ture Agere Systems high-reliability optics and are
packaged in a narrow-width plastic housing with an
LC duplex receptacle. This receptacle fits into an
RJ-45 form-factor outline. The 10-pin package and
pinout conform to a multisource transceiver agree-
ment.
The transmitter features differential LVPECL logic
level data inputs and an LVTTL logic level disable
input. The receiver features differential LVPECL logic
level data and an LVPECL logic level signal-detect
output for the 2417G4A, and a LVTTL logic level sig-
nal-detect output for the 2417H4A.
s
s
s
s
s
