DIVISION OF DELTROL CORP.
105ML
105 ML
SERIES MAGNETIC
LATCHING RELAY
5 & 10 AMP
PLUG-IN OCTAL BASE
FEATURES
s
Snap-action, One Piece Armature Eliminates
Interconnections
s
Molded Class F Coils Handle High Ambient
Temperatures, Resist Moisture and Dust
s
High Impact Polycarbonate Dust Cover
MODEL
105ML:
General Purpose Relay Terminates to Standard Pin
Type Octal Receptacles, Deltrol Type 105 Sockets
for SPDT and DPDT, Conxall Type 77-20 Sockets
for 3PDT, 4PDT and 5PDT
COIL DATA
NOMINAL
VOLTAGE
6VAC
12VAC
24VAC
120VAC
240VAC
6VDC
12VDC
24VDC
110VDC
RESISTANCE
IN OHMS
鹵
10%
4.5
18
72
1850
7200
20
80
315
6800
NOMINAL
COIL
POWER
CONTACT DATA
Configuration:
Thru 5PDT
Materials:
5 AMP:
1/8" Diameter Moveable Fine Silver
3/16" Diameter Stationary Fine Silver
10 AMP:
3/16" Diameter Moveable Silver Cadmium Oxide
3/16" Diameter Stationary Fine Silver
Gold Flash is Standard on All Contacts
Gold Diffused Available on Special Order 鈥?Min. Qty. Req鈥檇.
AC Coils
3.5VA
DC Coils
2W
CONTACT RATINGS
MOVEABLE
POLE
CONTACT SIZE CONFIGURATION
SPDT
DPDT
1/8" Diameter
3PDT
4PDT
5PDT
SPDT
DPDT
3/16" Diameter
3PDT
4PDT
5PDT
RATINGS
5 amp or 1/8 HP at
120VAC
5 amp or 1/4 HP at
240VAC
5 amp at 28VDC
10 amp or 1/3 HP at
120VAC
10 amp or 1/2 HP at
240VAC
10 amp at 28VDC
Coil Voltages:
AC: Up to 277 Volts/60 Hz
DC: Up to 125 Volts
Coil Treatment:
Molded Rynite
廬
Std. Class F
Insulation Resistance:
100 Megohms Minimum
UL Insulation System File No.:
E74443
S155D 155擄C Total Temperature Std.
(Covers S105 Class A and S130D Class B Requirements)
OPERATE DATA
Pick Up (at 25擄C):
AC Volts 85% or Less of Nominal
DC Volts 75% or Less of Nominal
Operate Time:
Approx. 20 Milliseconds
Release Time:
Approx. 20 Milliseconds
EXPECTED LIFE
Electrical At Rated Load (Minimum)
100,000 Cycles
Mechanical Life
10,000,000 Cycles
ENVIRONMENTAL DATA
Operating Ambient:
AC: -45擄 to 70擄C
DC: -45擄 to 85擄C
Coil Temperature Rise:
(25擄C Ambient 鈥?Continuous Duty)
AC: 45擄C Approx. @ 60 Hz 鈥?Use at 50 Hz will
Cause Slight Increase in Coil Rise
DC: 45擄C Approx.
DIELECTRIC STRENGTH
800 VRMS, 60 Hz Between Contacts
1500 VRMS, 60 Hz Between Other Elements

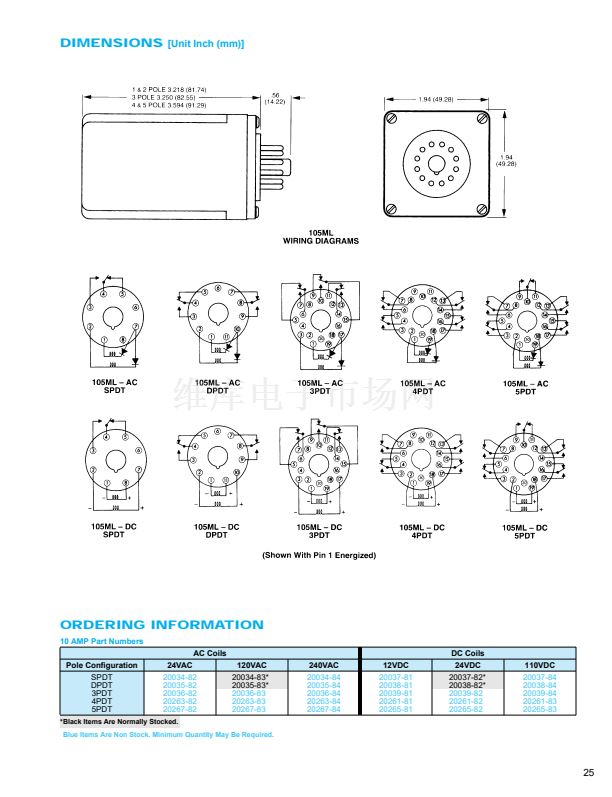

MECHANICAL DATA
Terminals:
Octal Type with 8, 11, 20 pins
Cover:
Polycarbonate 鈥?Flammability Rating 94V2
Weight:
Approx. 8.6 oz. (244 g)
