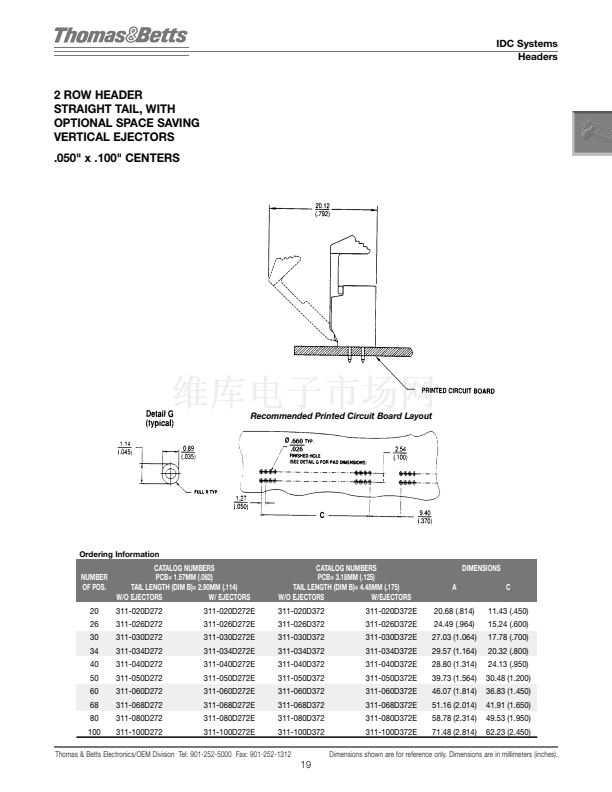

IDC Systems

Headers

2 ROW HEADER

STRAIGHT TAIL, WITH

OPTIONAL SPACE SAVING

VERTICAL EJECTORS

.050" x .100" CENTERS

LR49571

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic

rated UL 94V-0, infrared and vapor phase

process compatible

C

OLOR

:

Black

C

ONTACTS

:

Copper alloy, 30 microinches gold

over nickel in mating area, tin/lead plating in the

termination area.

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

1 Amp

I

NSULATION

R

ESISTANCE

:

>1 x 10

9

0hms

D

IELECTRIC

S

TRENGTH

:

> 1000 VAC at sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55藲C TO 125擄C

M

ATING

C

ONNECTORS

F

EMALE

S

OCKETS

:

See page 8

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

18
