IDC Systems

Ribbon Connectors

D

ESCRIPTION

/A

PPLICATION

Mechanical safety and EMI/RFI

protection are major features of the

Thomas & Betts Metal and Plastic

Shell Ribbon Connectors

Together with Thomas & Betts Flat

Cable, matching backshells for

jacketed flat cable or special round

cable as well as different mounting

hardware accessories, they provide

reliable

and

functional

I/O

terminations.

Serial production of cable sets

benefits from efficient and electrically

safe installation of the flat cable. This

is ensured by beryllium copper

contacts and connector design.

The spread contacts, a proprietary

technique developed by Thomas &

Betts, allow the use of standard flat

cable on 1.27mm centers as well as

any mating Thomas & Betts

connectors.

Thomas & Betts Ribbon Connectors

are fully compatible with industry

standard 2.16mm center connectors.

RIBBON CABLE

CONNECTORS

RIBBON CABLE CONNECTOR INDEX

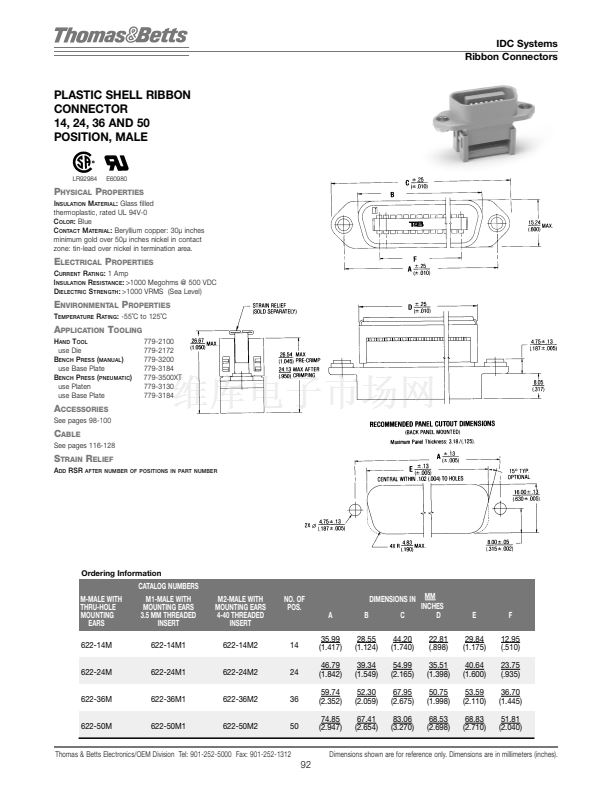

Plastic Shell, 14-50 pos., male ................................................92

Plastic Shell, 14-50 pos., female ............................................93

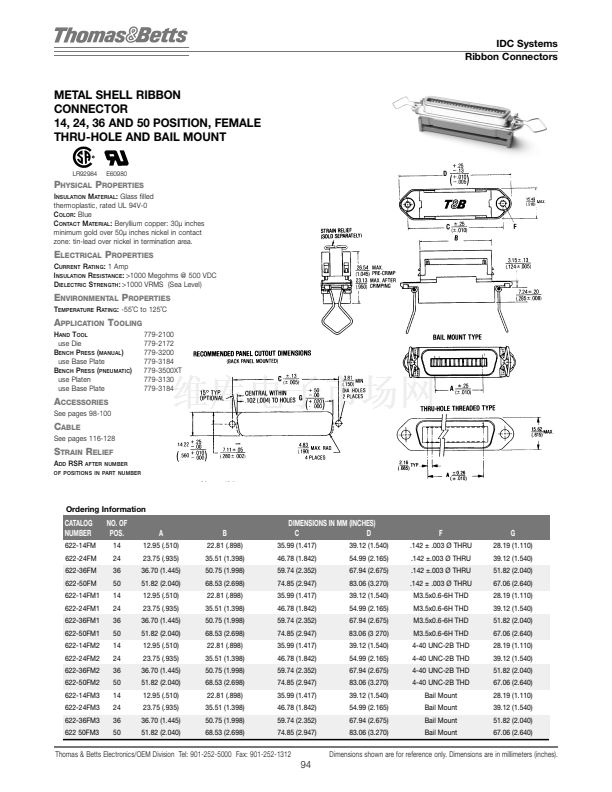

Metal Shell, 14-50 pos., female, thru-hole & bail mount ........94

Metal Shell, 14-50 pos., male, thru-hole & bail mount............96

Backshells................................................................................98

Mounting hardware..................................................................99

D

ESIGN

A

DVANTAGES

鈥?Indents in the high quality tin plated

metal shell assure superior ground

connection.

鈥?Available with bail mount or full

mounting ears (through hole, metric

and UNC threaded insert).

鈥?Stable plastic backshells, also

metallized, with outlet for jacketed

flat cable or special round cable

available for any number of

positions, with full screw mounting

hardware.

LR92984

E60980

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

91
