IDC Systems
PCB Solder Transition Connectors
P
RODUCT
D
ESCRIPTION
PCB Solder Transition Connectors
provide fast, permanent termination
of flat cable to printed circuit boards.
The PCB Standard 4 Row and 2 Row
Connectors can be soldered to the
board either before or after crimping
the cable.
PCB SOLDER TRANSITION
CONNECTORS,
4 ROW AND 2 ROW
D
ESIGN
A
DVANTAGES
4 ROW
鈥?11 contact sizes-10, 14, 16, 20,
26, 34, 40, 44, 50, 56, and 60
positions.
鈥?Available in solder tail lengths for
1.57 mm (.062") or 3.18 mm (.125")
board thickness.
鈥?Diagonal pin pattern.
2 ROW
鈥?Contact Material鈥擝eryllium copper
with tin/lead over 50 碌 inches
min. nickel plating.
鈥?16 contact sizes-4, 6, 8, 10, 14,
16, 20, 24, 26, 30, 34, 36, 40, 44,
50 and 60 positions.
鈥?Available in solder tail lengths for
1.57 mm (.062") or 3.18 mm (.125")
board thickness.
鈥?Narrow
design
maximizes
packaging density鈥攄esigned to fit
into a standard 2.54 mm x 2.54 mm
(.100" x.100") male header grid
pattern.
PCB SOLDER TRANSITION CONNECTORS INDEX

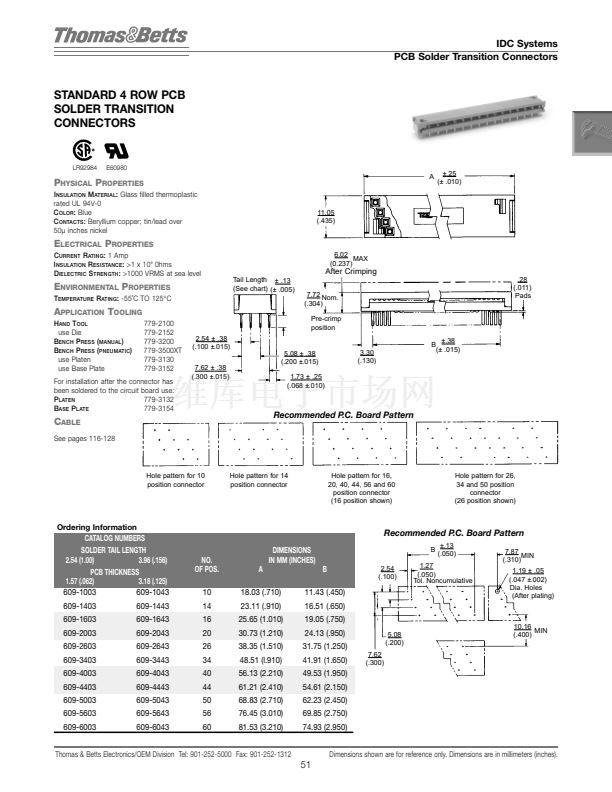

Standard 4 row PCB connector ..............................................51

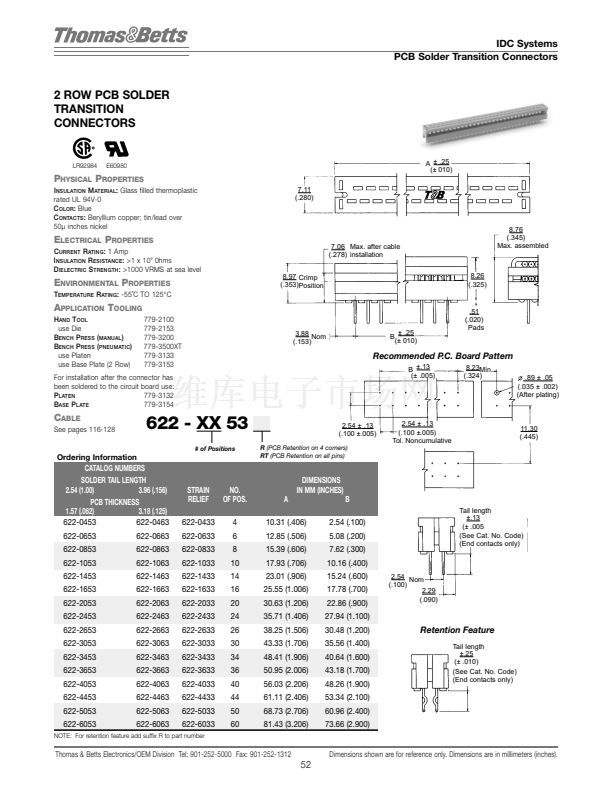

2 row Slim Line PCB connector ..............................................52
LR92984
E60980
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
50
