Silicon Avalanche Diodes

1500 Watt Metal Axial Leaded Transient Voltage Suppressors

1N60 Series

FEATURES

鈥?/div>

Hermetically sealed

鈥?/div>

Breakdown voltage range 6.8 - 200 volts

鈥?/div>

Glass passivated junction

鈥?/div>

Excellent clamping capability

鈥?/div>

Low zener impedance

鈥?/div>

100% surge tested

鈥?/div>

-55擄C to +150擄C

鈥?/div>

Bi-directional

廬

SILICON DIODE

ARRAYS

Min 31.8

Max

5.33

7.5

9.0

Min 25.4

Max

0.8

5.58

MAXIMUM RATING

鈥?/div>

Peak Pulse Power (Ppk): 15000 Watts (10 x 1000碌s)@25擄C

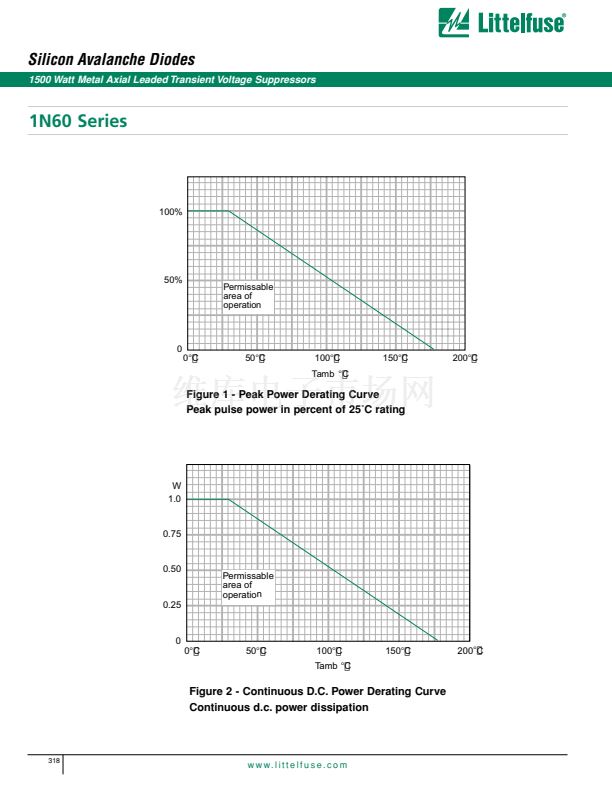

(see diagram on page 3 for wave form)

鈥?/div>

1 watt steady state

鈥?/div>

Response time: 1 x 10

-12

seconds (theoretical)

鈥?/div>

Operating & storage temperature: -55擄C to +150擄C

MECHANICAL CHARACTERISTICS

鈥?/div>

Case: Metal hermetically sealed DO-13 package

鈥?/div>

Terminals: Axial leads, solderable per MIL-STD-202

Method 208

鈥?/div>

Solderable leads = 230擄C for 10 seconds (1.59mm from case)

鈥?/div>

Weight: 1.5 grammes (approx)

Agency Approvals:

Recognized under the Components

Program of Underwriters Laboratories.

Agency File Number:

E128662

ORDERING INFORMATION

1N60 X X A

All dimensions in mm

Voltage Reference

5% Voltage Tolerance

Packaging Option

B = Bulk (500 pcs)

w w w. l i t t e l f u s e . c o m

317

現有數量
0現貨查看交期
價格
100 : ￥202.00700散裝
系列
-
包裝
散裝
產品狀態
在售
類型
齊納
單向通道
-
雙向通道
1
電壓 - 反向斷態（典型值）
170V
電壓 - 擊穿（最小值）
190V
不同 Ipp 時電壓 - 箝位（最大值）
294V
電流 - 峰值脈沖 (10/1000μs)
5.1A
功率 - 峰值脈沖
1500W（1.5kW）
電源線路保護
無
應用
通用
不同頻率時電容
-
工作溫度
-55°C ~ 175°C（TJ）
安裝類型
通孔
封裝/外殼
DO-13
供應商器件封裝
DO-13
