Model 110E
Vishay Spectrol
Mechanical Encoder
FEATURES
鈥?Cost Effective - Eliminates A/D Converters
鈥?High Resolution - Up to 36 Positions
鈥?Stability - Operating Range of - 40擄C to + 105擄C
鈥?Variability - Horizontal and Vertical Mounting
The Model 110E is a 7/8鈥?square mechanical encoder which provides a 2 - bit grey code for relative reference and a 4 - bit
grey code for absolute reference applications. Manually operated it has a rotational life of 100,000 shaft revolutions, a
positive dentent feel and can be combined with a second modular section in a concentric - shaft construction. Its small size
makes it suitable for panel-mounted applications where the need for costly front - panel displays can be completely elimi-
nated.
ELECTRICAL SPECIFICATIONS
PARAMETER
Output
2 - bit grey code, channel L leads channel R by 90
degrees electrically in the CW direction
4 bi - grey code, absolute electrical position output
5鈩?maximum
100K鈩?minimum
Resistance load 250mA @ 28VDC
1.5mA @ 115VDC
150mA @ 14VDC
5ms/cycle @ 15 RPM
1000VAC @ sea level
Continuous
50 RPM maximum
Closed Circuit Resistance
Open Circuit Resistance
Contact Rating
Switching Loads
Bounce
Dielectric Withstanding Voltage
Electrical Travel
Operating Speed

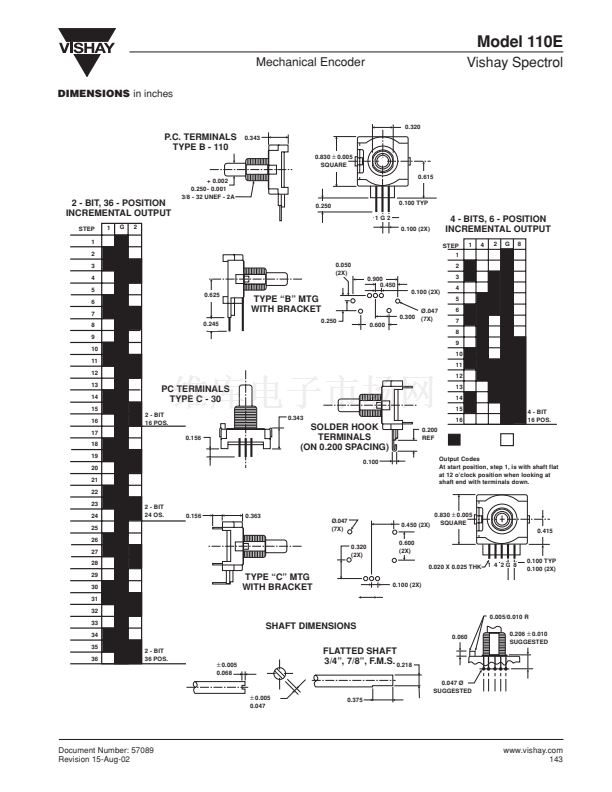

ORDERING INFORMATION
110E
MODEL
1
A
BUSHING
48
SINGLE SHAFT FMS
CODED IN 64ths
48 = 0.750鈥?/div>
56 = 0.875鈥?/div>
S: Slotted
F: Flatted
F
204P
2-4 - BIT GREY
CODE OPTIONS
204P = 4 cycles/rev
16 detents/rev
206P = 6 cycles/rev
24 dentents/rev
209P = 9 cycles/rev
36 dentents/rev
416P = 16 electrical
positions/rev
16 dentents/rev
Example:
110E - 1 - A - 48 - F - 204P - P
B: PC terminals straight
(horizontal mount)
C: PC terminals bent back
(vertical mount)
Type C - 30
P: Type B with
mounting bracket
D: Type C with
mounting bracket
S: Solder Hook
Hardware not included
P
110E
1 = @ 9鈥? clock
0 = None
A = 3/8 (9.53mm)
dia x 1/4 (6.35mm) long
G = 3/8 (9.53mm)
dia x 3/8 (6.35mm) long

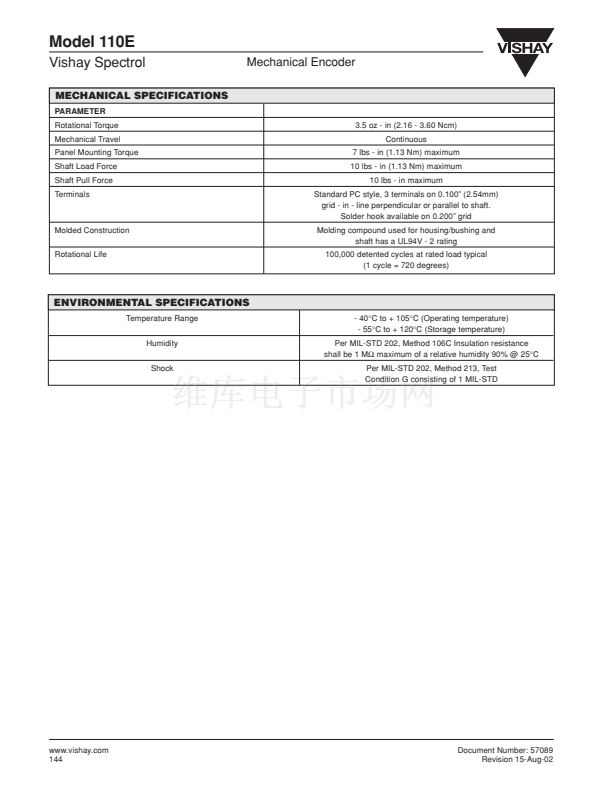

www.vishay.com
142
Document Number: 57089
Revision 15-Aug-02
