100311QI Datasheet

  • 100311QI

  • Low Skew 1:9 Differential Clock Driver

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

100311 Low Skew 1:9 Differential Clock Driver
February 1990
Revised November 1999
100311
Low Skew 1:9 Differential Clock Driver
General Description
The 100311 contains nine low skew differential drivers,
designed for generation of multiple, minimum skew differ-
ential clocks from a single differential input (CLKIN,
CLKIN). If a single-ended input is desired, the V
BB
output
pin may be used to drive the remaining input line. A HIGH
on the enable pin (EN) will force a LOW on all of the CLK
n
outputs and a HIGH on all of the CLK
n
output pins. The
100311 is ideal for distributing a signal throughout a system
without worrying about the original signal becoming too
corrupted by undesirable delays and skew.
Features
s
Low output-to-output skew
s
2000V ESD protection
s
1:9 low skew clock driver
s
Differential inputs and outputs
s
Available to industrial grade temperature range
(PLCC package only)
Ordering Code:
Order Number
100311QC
100311QI
Package Number
V28A
V28A
Package Description
28-Lead Plastic Lead Chip Carrier (PLCC), JEDEC MO-047, 0.450 Square
28-Lead Plastic Lead Chip Carrier (PLCC), JEDEC MO-047, 0.450 Square
Industrial Temperature Range (鈭?0擄C to
+85擄C)
Devices also available in Tape and Reel. Specify by appending the suffix letter 鈥淴鈥?to the ordering code.
Logic Symbol
Connection Diagram
28-Pin PLCC
Pin Descriptions
Pin Names
CLKIN, CLKIN
EN
CLK
0鈥?
, CLK
0鈥?
V
BB
NC
Description
Differential Clock Inputs
Enable
Differential Clock Outputs
V
BB
Output
No Connect
Truth Table
CLKIN
L
H
X
CLKIN
H
L
X
EN
L
L
H
CLK
n
L
H
L
CLK
n
H
L
H
漏 1999 Fairchild Semiconductor Corporation
DS010648
www.fairchildsemi.com

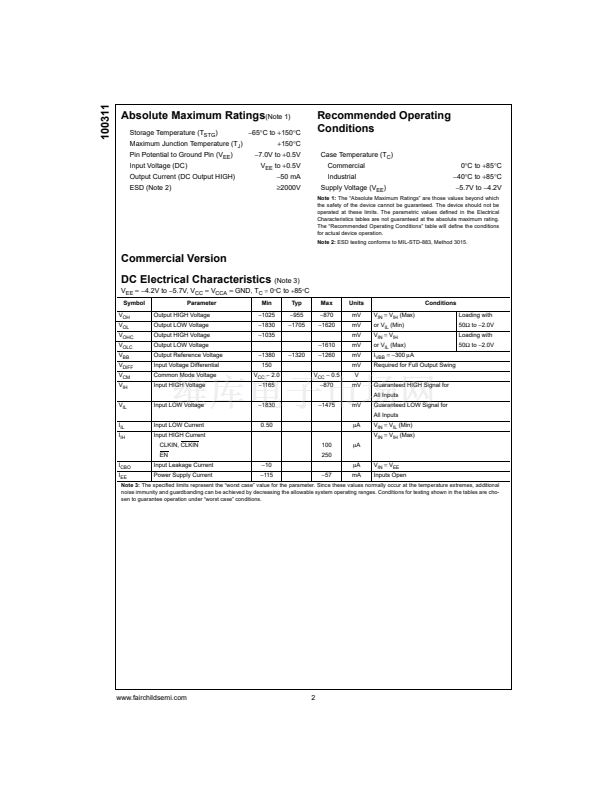

100311QI 產品屬性

  • Fairchild Semiconductor

  • 時鐘緩沖器

  • 18

  • 750 MHz

  • 1.17 ns

  • - 5.7 V

  • - 4.2 V

  • + 85 C

  • - 40 C

  • PLCC-28

  • Tube

  • SMD/SMT

  • 35
