Single port shielded RJ-45 connector with integrated
Gigabit Ethernet magnetics and either dual or
single USBS
Compatible with a variety of Gigabit Ethernet
transceiver ICs and 10/100Base-TX transceiver ICs
Operating temperature 0擄 to +70擄 C
Storage temperature -40擄 to +85擄 C
鈥?/div>
Complies with IEEE 802.3ab standards and all Gigabit
Ethernet specifications
Integrated design conserves valuable board space
Minimum interwinding breakdown voltage of 1500 Vrms
Adaptable, modular design provides higher reliability
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ELECTRICAL SPECIFICATIONS AT 25擄 C
Insertion Loss
dB max
Return Loss
dB min
Common to
Differential Mode
Rejection
dB min
100KHz to 100MHz
Common to
Common Mode
Rejection
dB min
100KHz to 100MHz
-33 + 20 log
(f/100MHz)
Crosstalk
dB min
Hipot
Vrms min
0.1MHz
to 100MHz
-0.8
100MHz to
125MHz
-1.2
0.5MHz
to 40MHz
-18
40MHz
to 100MHz
-12 + 20 log
(f/80 MHz)
-35
-30
1500
SCHEMATIC
0892-1AX1-62
0892-1BX1-62
0892-1CX1-62
0892-1DX1-62
0892-1EX1-62
0892-1GX1-62
0892-1KX1-62
0892-1LX1-62
0892-1XX1-62
0892-1YX1-62
21
LED 1
22
10
11
12
13
14
1CT : 1CT
1CT : 1CT
1CT : 1CT
RJ45
1
2
3
6
4
15
16
17
9
18
19
LED 2
20
1000pF
2kV
75鈩?/div>
x4
5
1CT : 1CT
7
8
Shield

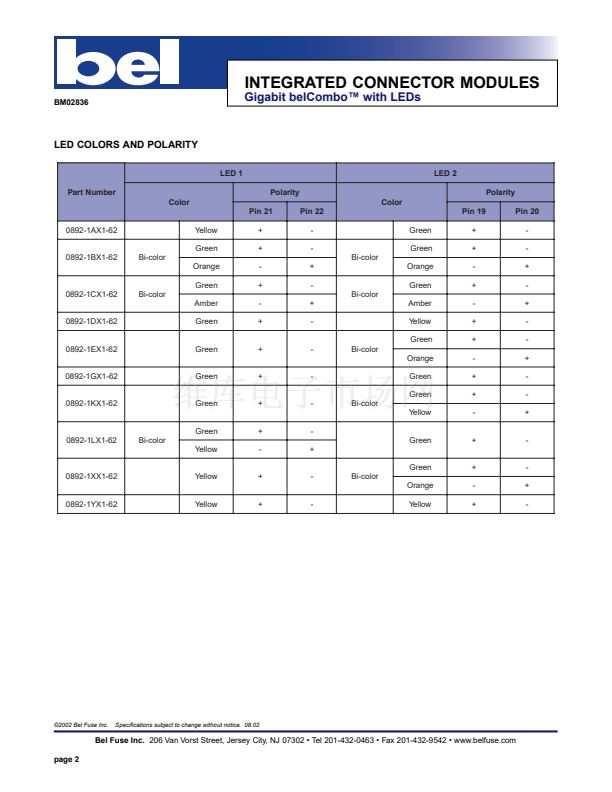

See chart on page 2 for LED colors and polarity.
漏2002 Bel Fuse Inc.
Specifications subject to change without notice. 08.02
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
