0826-1Y4T-23 Datasheet

  • 0826-1Y4T-23

  • 4port.Y/Y LEDs.RJ45 10/100/1000 Gigabit Ethernet

  • 4頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

INTEGRATED CONNECTOR MODULES
Gigabit belStick鈩?with LEDs
鈥?/div>
Four port shielded RJ-45 connector with integrated
Gigabit Ethernet magnetics
Compatible with a variety of Gigabit Ethernet
transceiver ICs and 10/100Base-TX transceiver ICs
Operating temperature 0擄 to +70擄 C
鈥?/div>
鈥?/div>
Storage temperature -40擄 to +85擄 C
Adaptable, modular design provides higher reliability
鈥?/div>
BM02830
Complies with IEEE 802.3ab standards and all Gigabit
Ethernet specifications
Integrated design conserves valuable board space
Minimum interwinding breakdown voltage of 1500 Vrms
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ELECTRICAL SPECIFICATIONS AT 25擄 C
Insertion Loss
dB max
Return Loss
dB min
Common to
Differential Mode
Rejection
dB min
100KHz to 100MHz
Common to
Common Mode
Rejection
dB min
100KHz to 100MHz
-33 + 20 log
(f/100MHz)
Crosstalk
dB min
Hipot
Vrms min
0.1MHz
to 100MHz
-0.8
100MHz to
125MHz
-1.2
0.5MHz
to 40MHz
-18
40MHz
to 100MHz
-12 + 20 log
(f/80 MHz)
-35
-30
1500
SCHEMATIC
13
LED 1
14
11
12
10
4
6
5
3
1
2
8
7
9
15
LED 2
16
Shield

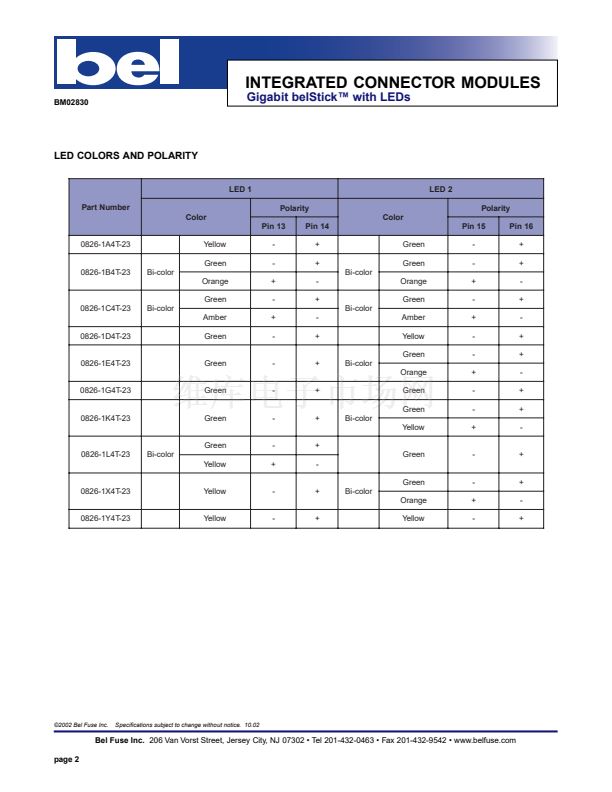

See chart on page 2 for LED colors and polarity.
漏2002 Bel Fuse Inc.
Specifications subject to change without notice. 10.02

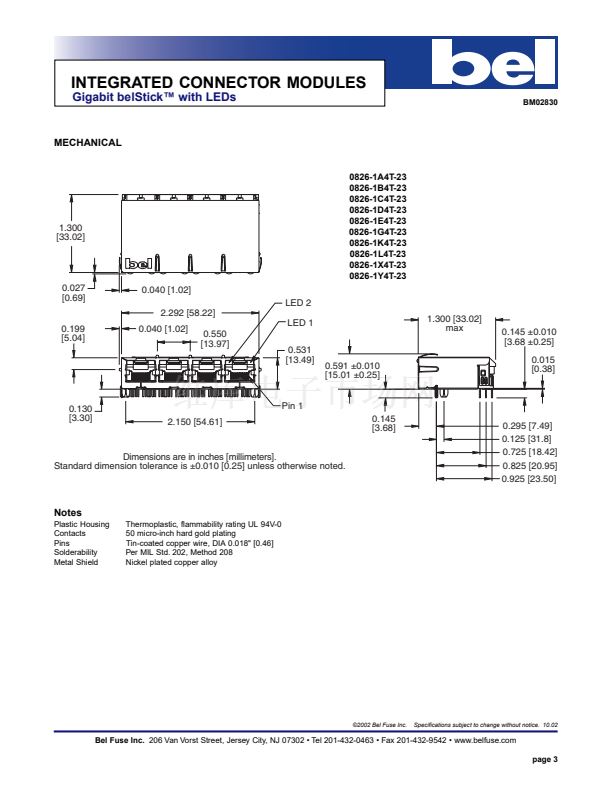

0826-1A4T-23
0826-1B4T-23
0826-1C4T-23
0826-1D4T-23
0826-1E4T-23
0826-1G4T-23
0826-1K4T-23
0826-1L4T-23
0826-1X4T-23
0826-1Y4T-23
1CT : 1CT
RJ45
1
2
1CT : 1CT
3
6
1CT : 1CT
4
5
1CT : 1CT
7
8
75鈩?/div>
x4
1000pF
2kV
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
