Quad port shielded RJ-45 connector with integrated
10/100 magnetics
Compatible with a variety of 10/100 transceiver ICs
Operating temperature 0擄 to +70擄 C
Storage temperature -40擄 to +85擄 C
0811-1X4T-06 design supports AutoMDIX applications
鈥?/div>
BM01811
Complies with IEEE standards and all 10/100 Ethernet
specifications including 350碌H with 8mA DC bias
Integrated design conserves valuable board space
Minimum interwinding breakdown voltage of 1500 Vrms
Adaptable, modular design provides higher reliability
Reduced pin count for improved crosstalk and optimum
PCB trace routing
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ELECTRICAL SPECIFICATIONS AT 25擄 C
Insertion
Loss
dB max
Common to
Differential
Mode
Rejection
dB min
60MHz to
80MHz
-12
Common to
Common
Mode
Rejection
dB min
1MHz
Return Loss
dB min
Crosstalk
dB min
Part Number
1MHz to
100MHz
0811-1X4T-03
-1.0
1MHz to
30MHz
-18
30MHz to
60MHz
18 - 20 log
(f/30MHz)
18 - 20 log
(f/30MHz)
18 - 20 log
(f/30MHz)
100kHz to 100MHz
30MHz
50MHz
100MHz
-40
-30
-70
-45
-40
-35
0811-1X4T-04
-1.0
-18
-12
-40
-30
-70
-45
-40
-35
0811-1X4T-06
-1.0
-18
-12
-40
-30
-70
-45
-40
-35

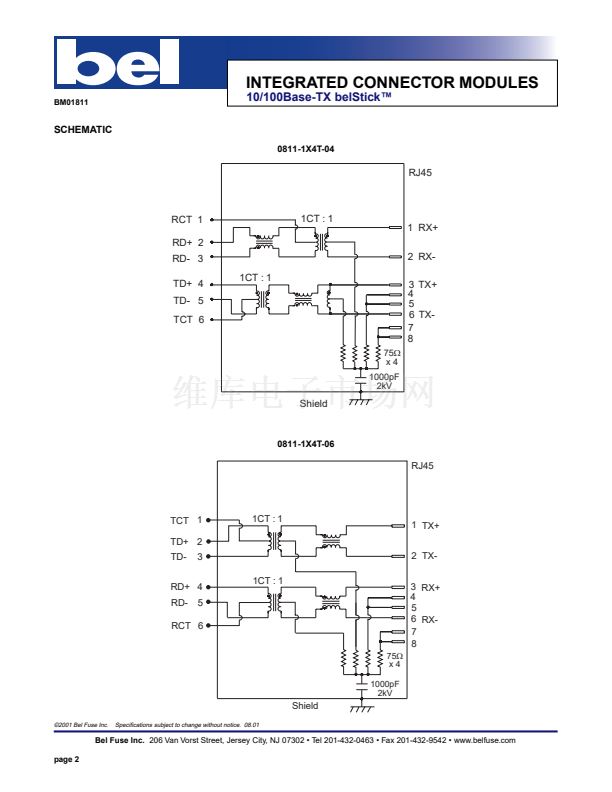

SCHEMATIC
0811-1X4T-03
RJ45
TCT 1
TD+ 2
TD- 3
RD+ 4
RD- 5
RCT 6
1CT : 1
1 TX+
2 TX-
1CT : 1
3 RX+
4
5
6 RX-
7
8
75鈩?/div>
x4
1000pF
2kV
Available Options
鈥?Various transformer turns ratios
鈥?Various high voltage capacitor values
Shield
漏2001 Bel Fuse Inc.
Specifications subject to change without notice. 08.01
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
page 1
