Y5V Dielectric

General Specifications

Y5V formulations are for general-purpose use in a limited

temperature range. They have a wide temperature character-

istic of +22% 鈥?2% capacitance change over the operating

temperature range of 鈥?0擄C to +85擄C.

Y5V鈥檚 high dielectric constant allows the manufacture of the

highest capacitance value in a given case size.

These characteristics make Y5V ideal for decoupling applica-

tions within limited temperature range.

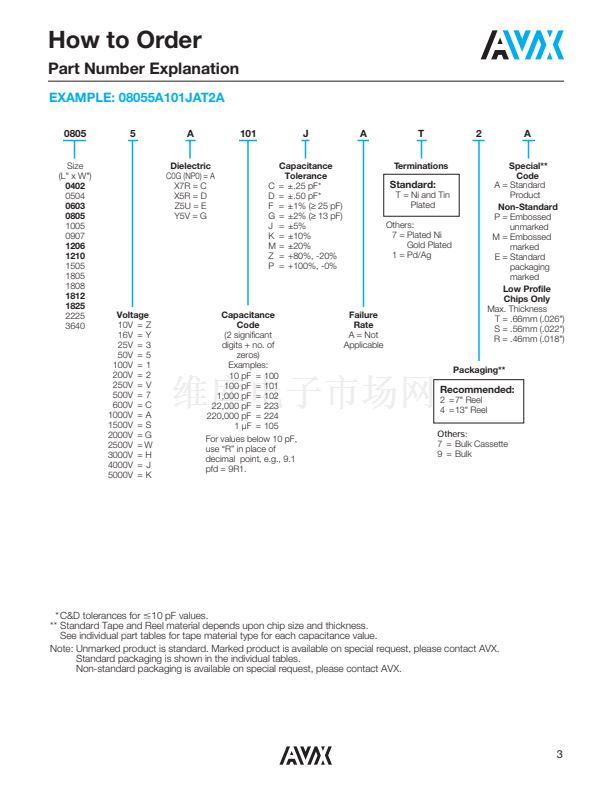

PART NUMBER (see page 3 for complete part number explanation)

0805

Size

(L" x W")

3

Voltage

10V = Z

16V = Y

25V = 3

50V = 5

G

Dielectric

Y5V = G

104

Capacitance

Code

Z

Capacitance

Tolerance

Z = +80 鈥?0%

A

Failure

Rate

A = Not

Applicable

T

Terminations

T = Plated Ni

and Solder

2

Packaging

2 = 7" Reel

4 = 13" Reel

A

Special

Code

A = Std.

Product

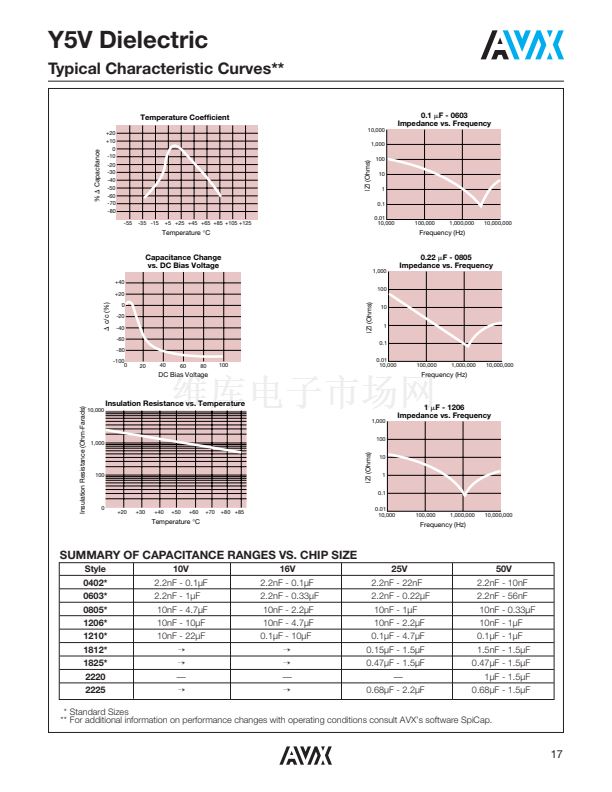

PERFORMANCE CHARACTERISTICS

Capacitance Range

Capacitance Tolerances

Operating Temperature Range

Temperature Characteristic

Voltage Ratings

Dissipation Factor

2200 pF to 22 碌F

+80 鈥?0%

鈥?0擄C to +85擄C

+22% to 鈥?2% max. within operating temperature

10, 16, 25 and 50 VDC (+85擄C)

For 50 volts: 5.0% max.

For 16 and 25 volts: 7% max.

For 10 volts: 10% max.

10,000 megohms min. or 1000 M鈩?- 碌F min., whichever is less

250% of rated voltage for 5 seconds at 50 mamp max. current

1.0 Vrms 鹵 0.2 Vrms

1 KHz

Insulation Resistance

(+25擄C, RVDC)

Dielectric Strength

Test Voltage

Test Frequency

16

next
