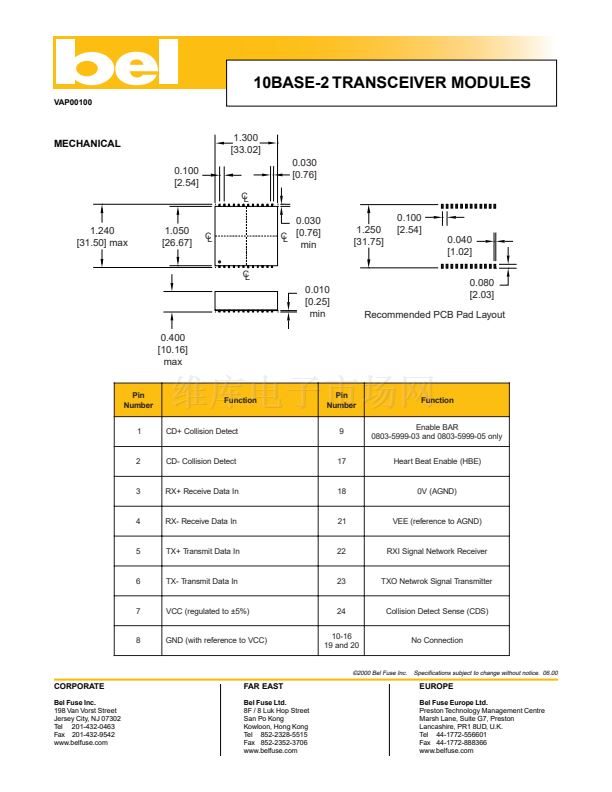

10BASE-2 TRANSCEIVER MODULES
VAP00100
鈥?/div>
Complete thin net transceiver contained in a modular
surface mount package
Compliant with ANSI/IEEE 802.3 and ISO-8802-3
standards
鈥?/div>
鈥?/div>
Low power transceiver chipset
Regulated DC/DC converter with high efficiency
charcteristics
Enable function for DC/DC converter available
Self contained loopback test for network cable opens
and shorts
Heart beat enable
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
5.0V and 3.3V input voltages available
鈥?/div>
Squelch circuitry on all signal inputs for noise reduction
鈥?/div>
ELECTRICAL SPECIFICATIONS at 25擄C
Isolation Voltage
Part Number
Input Voltage
鹵20% Nom
VCC Line
Noise
Standby
Current
Transmit
Current
Enable
TX, RX & CD
VCC & GND
0803-5999-02
3.3V 鹵10%
100mVp-p
200
225
No
2KVDC
500VDC
0803-5999-03
3.3V 鹵10%
100mVp-p
210
235
Yes
2KVDC
500VDC
0803-5999-04
5.0V 鹵10%
100mVp-p
305
340
No
2KVDC
500VDC
0803-5999-05
5.0V 鹵10%
100mVp-p
315
350
Yes
2KVDC
500VDC
Operating temperature -40擄 to +85擄 C
Storage temperature -55擄 to +125擄 C
CD+ 1
CD- 2
RX+ 3
RX- 4
TX+ 5
TX- 6
83/89
C
92
Transceiver
24
23
22
21
CDS
TXO
RXI
VEE
Typical Applications
鈥?/div>
Print servers
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
10Base-2 repeaters
Cable modem set-top boxes
Plug and play 10Base-2 ports
Thin net transceivers
Network interface cards (NICS)
10Base-T hubs with 10Base-2
interface
PC motherboard designs,
network ready
Adapter board PC designs
18 OV (AGND)
17 HBE
Regulator
VCC 7
DGND 8
ENABLE 9
Note: Enable on -03 and -05 units only, otherwise no connection
